Product Details:
|
| Name: | ESP32 S3 Display | Resolution: | 800x480 |
|---|---|---|---|
| Application: | Esp32 Development Board | PCB Board Color: | Yellow |
| Driver IC: | EK9716 | Effective Display Area: | 153.84* 85.63(mm) |
| Module Size: | 181.0*108.0(mm) | Touch: | With Resistance Touch |
| Highlight: | 300 nits ESP32 S3 Display,ESP32 S3 Display 7 Inch,Resistance Touch Screen Intelligent |
||

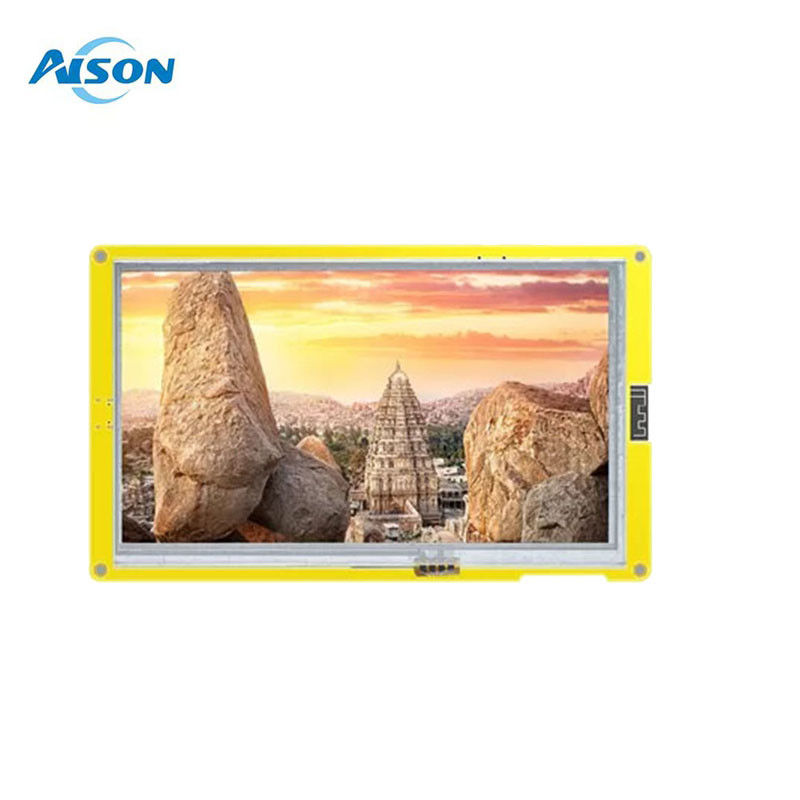

7 inch Resistance Touch ESP32-S3 HMI 8M PSRAM 16M Flash Arduino Lvgl WiFi & Bluetooth 7 "800*480 Smart Display RGB LCD TFT Module
| Specifications | |
| Part No. | ESP32-8048S070N |
| Size | 7inch |
| Display color | RGB 65K color |
| Driver IC | EK9716 |
| Resolution(dots) | WVGA, 800*RGB*480 |
| LCD Panel | TN |
| PCB Color | yellow |
| Brightness | 300 nits |
| Operating temperature(°C) | -20℃~70℃ |
| Storage temperature(°C) | -30℃~80℃ |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) |
| Pixel Pitch | 0.135(W)x0.135(L) |
| Pixel arrangement | RGB Vertical stripe |
Application :
1. Internet of things;
2. Intelligent home;
3. Industrial control;
4. Health care;
5. Consumer electronics;
6. Automotive electronics and other applications

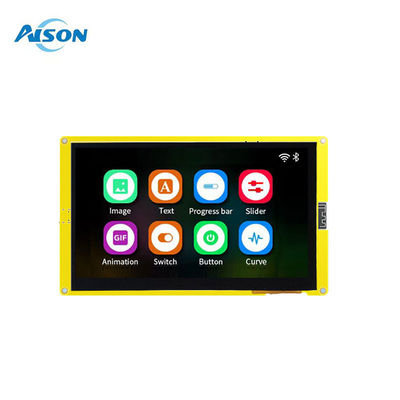

ESP32 7inch Display module

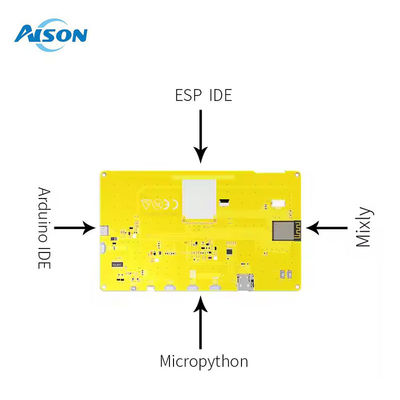

Development support and sample code ESP32 7inchDisplay module provides development support and sample code to enable developers to quickly start using the platform and customize it for specific applications.
Industrial Design: This module adopts industrial design, with high reliability and stability, can work in a variety of harsh environments
Esp327-inch LCD module is open source software and hardware parts, you can easily carry out secondary development and customization
