Product Details:
|
| Product Name: | 10.1 Inch TFT LCD Display | Resolution: | 1280X800 |
|---|---|---|---|
| Outline Dimension: | 260X169*7.8 Mm | Active Area: | 216.96X135.6 Mm |
| Interface: | LVDS | Display Mode: | Normally Black, Transmissive |
| Brightness: | 1000 Cd/m2 | Operating Temperatures: | -30 To 85 Degree |
| Storage Temperatures: | -40 To 85 Degree | Application: | For Industrial And Medical |
| Highlight: | 10.1 Inch Touch Screen Display,Touch Screen Display 1280x800,TFT IPS Screen High Brightness |
||

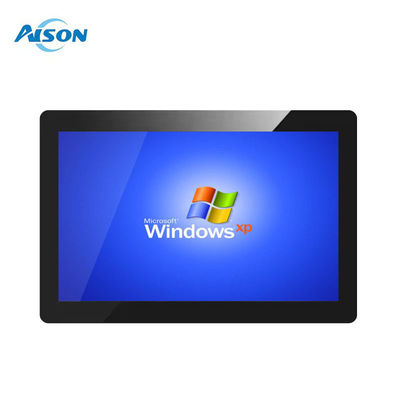

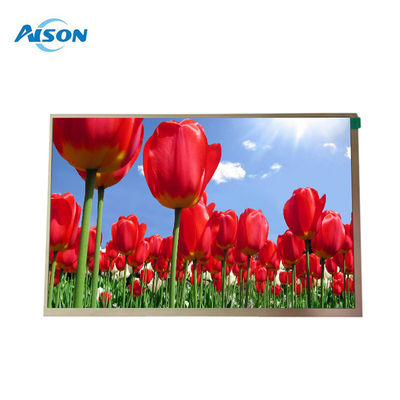

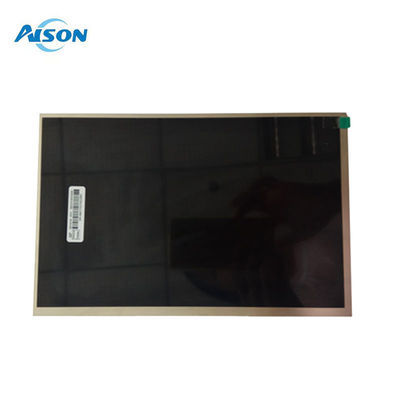

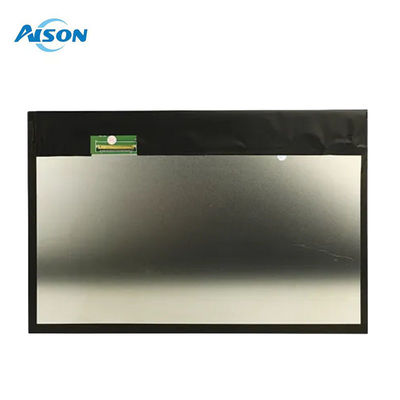

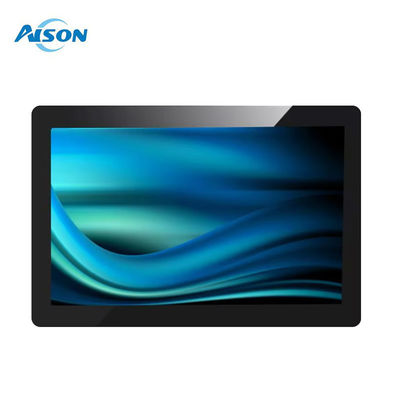

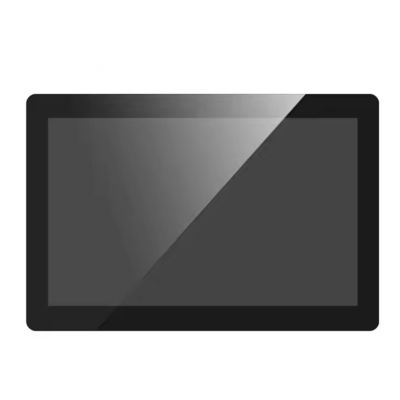

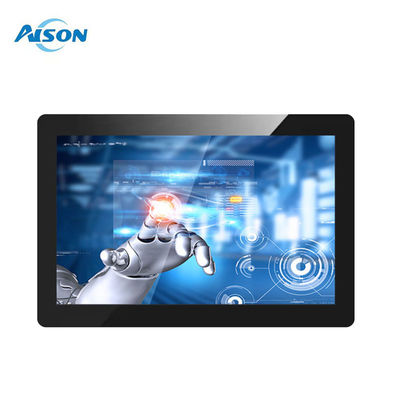

Hight Brightness 10.1 Inch LVDS 1280x800 IPS TFT LCD Display Supplier with Capacitive Touch Screen
Display General Description
This 10.1-inch TFT LCD Display offers superior visual performance and versatility for various applications. With a resolution of 1280x800 pixels, it delivers crisp and vibrant images, providing an immersive viewing experience.
To enhance usability, the display comes with a built-in capacitive touchscreen functionality, allowing for intuitive interaction and precise input. The touchscreen is responsive and supports multi-touch gestures, providing a seamless and interactive user experience.
It can be operating at a wide temperatures from -30℃ to +85℃ and storage temperatures from -40℃ to +85℃.This 10.1 inch IPS lcd module is built to withstand diverse environmental conditions.
It is suitable for a wide range of applications, including industrial equipment, medical devices, gaming systems, automotive displays, and more.
General Data
| Model Name | 10.1 inch TFT LCD Display |
| Resolution | 1280X800 |
| Model Size (W*H*T)mm |
260X169*7.8 mm
|
| Display Area (W*H)mm |
216.96X135.6 mm
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 1000 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| CTP Driver IC |
GT928
|
| Operating temperatures | -30 to 85 degree |
| Storage temperatures | -40 to 85 degree |
Drawing
Product Details
TFT Applications
This 10.1 inch tft display is suitable for a wide range of applications, including industrial equipment, medical devices, gaming systems, automotive displays, and more.
