Product Details:
|
| Name: | 2.1 Inch Round LCD Module | Interface: | 3SPI+18RGB |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Size: | 2.1 Inch |
| Active Area: | 53.28*53.28 | Resolution: | 480*480 |
| Brightness: | 300cd/m2 | ||
| Highlight: | 300nits LCD Module,LCD Module SPI,IPS Modules 2.1 Inch |
||

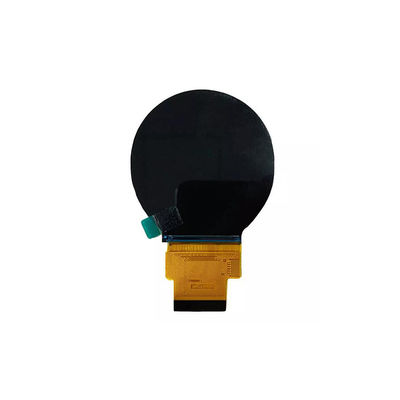

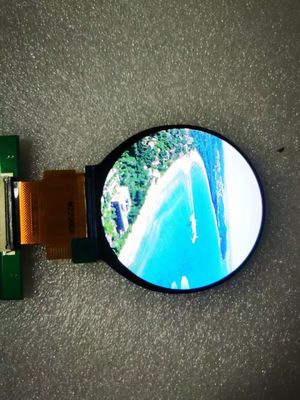

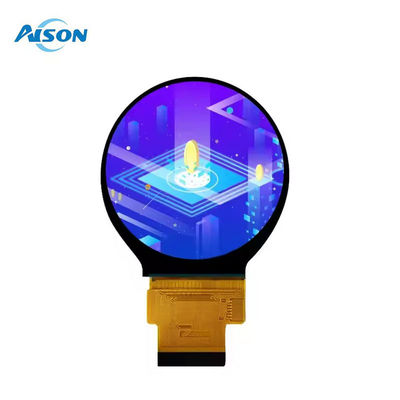

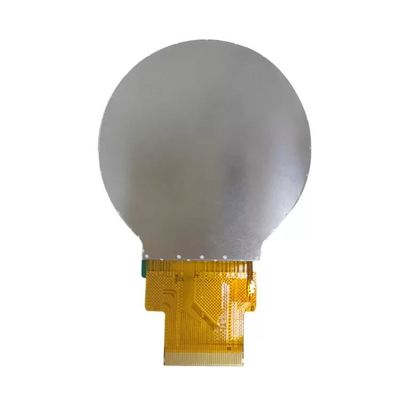

2.1 inch round TFT LCD IPS Module with 480*480 resolution for smart home
1. General Specifications
The Z021WQI-B40L-0623 is a compact TFT-LCD module designed for high-performance display applications. This module integrates a high-quality TFT-LCD panel, advanced driver IC, flexible flat cable (FPC), and a reliable backlight unit to ensure optimal performance.
With a 2.1-inch display area, this module features a resolution of 480x480 pixels, delivering vibrant visuals with a color depth of up to 16.7 million colors.
Compliant with RoHS environmental standards, this product is an eco-friendly choice for various industrial and consumer applications.
|
Feature |
Spec |
|
|
Characteristics |
PN |
Z021WQI-B40L-0623 |
|
Size |
2.1 inch |
|
|
Resolution |
480*480 |
|
|
Interface |
3SPI+18RGB |
|
|
Connect type |
Connector |
|
|
Color Depth |
16.7M |
|
|
Technology type |
a-Si |
|
|
Display Spec. Pixel pitch (mm) |
- |
|
|
Pixel Configuration |
R.G.B. Vertical Stripe |
|
|
Display Mode |
Normally Black |
|
|
Brightness |
300nits |
|
|
Viewing Direction |
ALL |
|
|
Mechanical |
LCM (W x H x D) (mm) |
56.18 *59.71*2.3 |
|
Active Area(mm) |
53.28*53.28 |
|
|
With /Without TSP |
Without |
|
|
Weight (g) |
TBD |
|
|
LED Numbers |
4 LEDs |
|
|
Operating Temperature |
-20~70°C |
|
|
Storage Temperature |
-30~80°C |
|
2. Optical Specifications
3. Drawing picture
4. Application
Smart Watch, white goods, wrist watch
