Product Details:
|
| Product Name: | 2.76 Inch 480x480 Circular IPS TFT LCD Module | Resolution: | 480x480 |
|---|---|---|---|
| Module Size: | 73.03x76.48x2.3 Mm | Active Area: | 70.128x70.128 Mm |
| Interface Type: | MIPI | Brightness: | 300 Cd/m2 |
| Display Mode: | TFT, Normally Black, Transmissive | Working Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 2.76 Inch MIPI LCD Display,MIPI LCD Display 30 Pin,LCD Display Panel Transmissive |
||

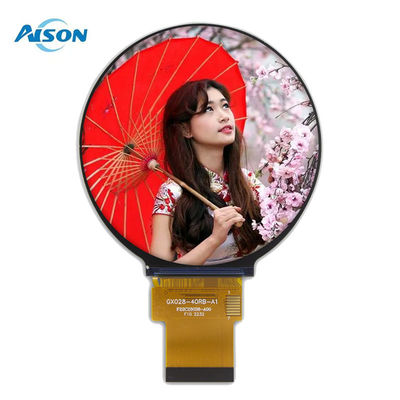

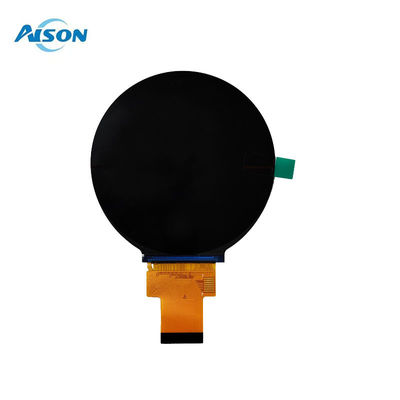

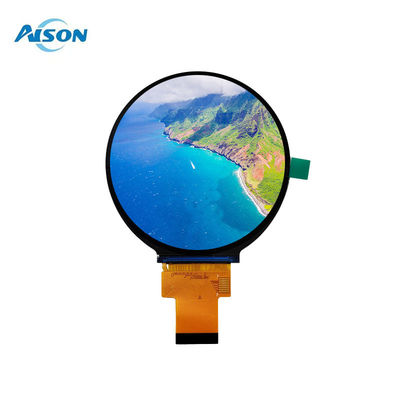

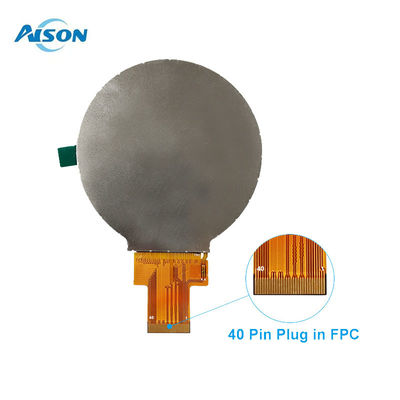

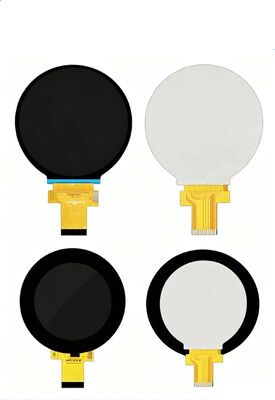

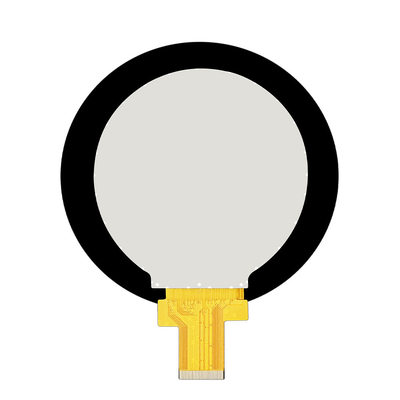

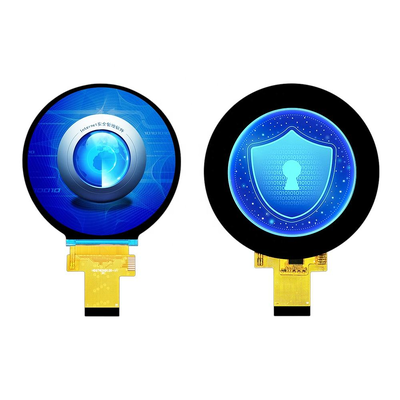

2.76 inch 480x480 MIPI Interface Round LCD Module 2.8 inch Circular TFT Display
Features:
● 2.8 inch(2.76 ''), 480×480 pixels, IPS wide viewing angle circular TFT LCD
● 16.7M color, MIPI 30 Pin interface, 300 cd/m², ST7701S Driver IC
● OCA bonding capacitive touch panel can be realized
● Operating temperatures -20 to 70 ℃;Storage temperatures -30 to 80 ℃
| Model Name | 2.8 inch circular lcd display |
| Resolution | 480X480 |
| Model Size (W*H*T) |
73.03x76.48x2.3 mm
|
| Display Area (W*H) | 70.128x70.128 mm |
| Interface | MIPI |
| Display Mode | Normally Black,Transmissive |
| Viewing Angle | 85/85/85/85 |
| Brightness | 300 cd/m2 |
| LCD Pin number | 30 pin |
|
Driver IC
|
ST7701 |
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
This 2.8 inch round lcd module is perfect for user-friendly applications in smart home devices, instruments, systems, wearables,
medical devices and consumer electronics.
