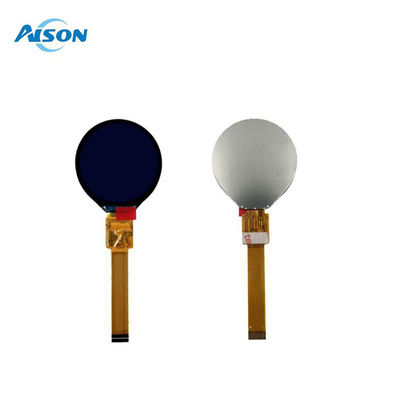

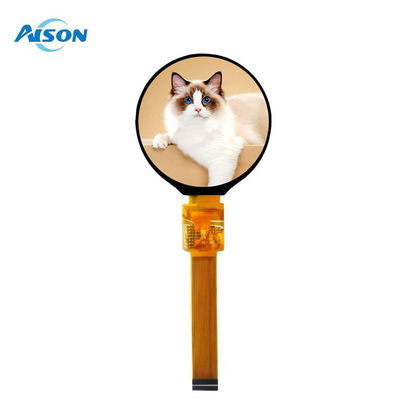

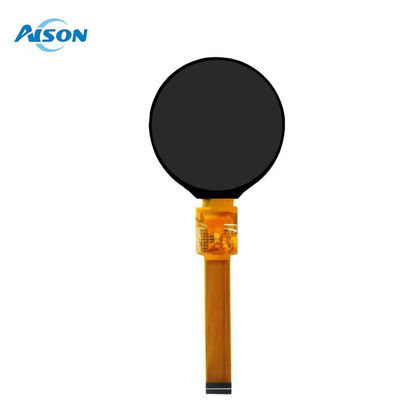

1.6 inch Round LCD Display 400*400 16pin Q-SPI Interface TFT LCD Modules For Smartwatch

Name: 1.6 inch Round LCD Display 400*400 16pin Q-SPI Interface TFT LCD Modules For Smartwatch
Brand: Aison Technology (HK) Co.,Ltd.
SKU: Z016WQ01
Price: 49.00 USD
Availability: InStock

All Products

TFT LCD Display
(53)

Industrial TFT Display
(27)

Custom LCD Display Module
(9)

IPS TFT LCD Display
(9)

HDMI TFT Display
(13)

HMI LCD Display
(2)

Round TFT Display
(32)

Bar Type LCD Display
(23)

Square TFT Display
(6)

Mini LCD Module
(5)

TFT Capacitive Touch Screen
(22)

TFT Resistive Touch Screen
(13)

OLED Display Module
(5)

ESP32 Display Module
(14)

Original LCD Display
(10)

Certification

Customer Reviews

We have received the goods, and inspected them, 100% OK, the quality is really good, we will use the displays for the medical device.

—— Milo Masson

Supplier was very helpful and items came in good condition.

—— Adele Bessemer

The highest quality,really appreciate the good service , I will order more next time.

—— Melody

Fast shippment and good service

—— Valat ODEMIS

I really appreciate your support &service u are so patient with customers.

—— Jakub Szczerba

Easy to work with and quick response. They immediately shipped the samples and they arrived quicker than I actually expected via FedEx.

—— Everett Johnson

Friendly and helpful customer service, fast shipping and good product!

—— Diego Ferreti

Nice quality, fast delivery, service is good, send me all specific info about display.

—— fernando glez

Good quality and communication,worth to work with!

—— Florian Wernhart

I'm Online Chat Now

1.6 inch Round LCD Display 400*400 16pin Q-SPI Interface TFT LCD Modules For Smartwatch

Large Image : 1.6 inch Round LCD Display 400*400 16pin Q-SPI Interface TFT LCD Modules For Smartwatch

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z016WQ01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

1.6 inch Round LCD Display 400*400 16pin Q-SPI Interface TFT LCD Modules For Smartwatch

Description

Name:	1.6 Inch Round TFT Display	Resolution:	400X400
Outline Dimension:	42.9245.872.2mm	Active Area:	39.840*39.840mm
Interface:	QSPI	Driver IC:	ST77903
Brightness:	230 Cd/m2	Display Mode:	TFT, Normally Black, Transmissive
Operating Temperatures:	-20 To 70 Degree	Contrast Ratio:	1000"1
Highlight:	1.6 Inch Round TFT Display , Round TFT Display 16 Pin , 16 Pin LCD Display 400x400

1.6 inch Round LCD Display 400*400 16pin Q-SPI Interface TFT LCD Modules For Smartwatch

General Description

High-Quality Display: This 1.6 Inch round LCD Display Screen boasts a vibrant ST77903 400x400 IPS TFT Module with LED backlight, ensuring crisp and clear visuals for various display applications.
Compact Design: With a compact 1.6-inch display size, this module is ideal for space-constrained projects, making it perfect for use in wearable devices, smart home systems, or other miniaturized electronics.
SPI Interface Compatibility: The module features a convenient SPI interface, allowing for seamless integration with a wide range of microcontrollers and development boards, including those used by users who require a user-friendly interface.
Long-Lasting Performance: Built with a durable design, this LCD Display Screen provides reliable performance and a long lifespan, making it suitable for demanding applications that require continuous operation.
Manufacturer Quality Guarantee: As a direct manufacturer, we offer a guarantee of high-quality products, ensuring that customers receive a reliable and efficient display solution that meets their specific needs and expectations.

General Data

Model Name	1.6 inch round tft display
Resolution	400x400
Model Size (WHT)	42.9245.872.2mm
Display Area (W*H)	39.840*39.840mm
Interface	QSPI
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Brightness	230 cd/m2
LCD Pin number	16 pin
Contrast Ratio	1000:1
Operating temperatures	-20 to 70 ℃
Storage temperatures	-30 to 80 ℃

Drawing

Product Details

TFT Applications

This 1.6 inch round lcd module is perfect for use in smart home systems, wearables, and medical devices.
