Product Details:
|
| Product Name: | 3.54 Inch Lamp Shape TFT Display | Resolution: | 800x640 |
|---|---|---|---|

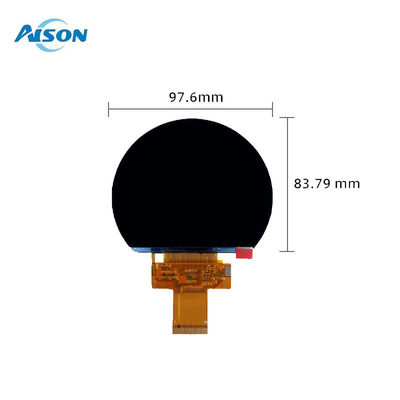

| Module Size: | 97.6*83.79*4.0 Mm | AA Size: | 90x72mm |
| Interface Type: | 3SPI+18Bit RGB | Luminance: | 1000 Cd/m2 |
| Display Mode: | TFT, Normally Black, Transmissive | View Direction: | ALL/IPS |
| Working Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 3.54 Inch Round TFT Display,Round TFT Display 800x640,TFT Display Panel Lamp Shape |
||

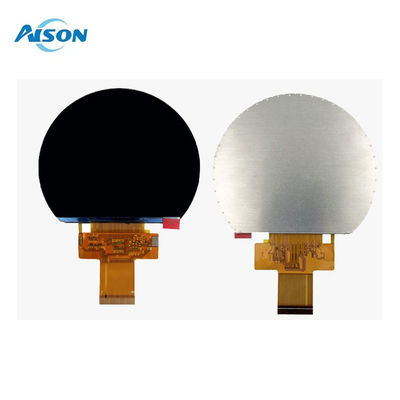

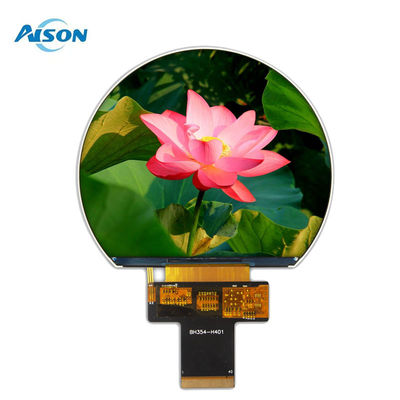

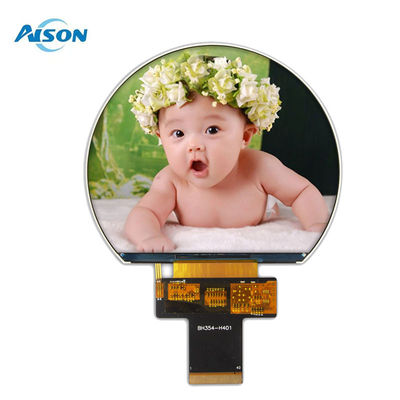

3.54 inch Lamp-shape round TFT Display with 800*640 resolution for Motorbicycle Instrument
The 3.54-inch TFT LCD is a small-sized display panel designed to provide high-quality visuals in a compact form factor. With its full-view capability and impressive resolution of 800x640 pixels, this display delivers sharp and vibrant images, making it suitable for various applications where space is limited.
The display is designed for dashboard,white house,smart home,industrial equipment device and other electronic products which require high quality flat panel displays,excellent visual effect.
| Product Name | 3.54 inch Lamp-shape tft display |
| Number of Pixel | 800x640 |
| Interface | 3SPI+18 Bit RGB |
| Luminance(cd/m2) | 1000cd/m2 |
| Active area | 90x72mm |
| LCM (W x H x D) | 97.6*83.79*4.0 mm |
| Viewing Direction(eye) | ALL |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Product Applications
1,Handheld devices
2,Car GPS
3,POS device
4,Smart Home
5,Remote Control device
6,Gauge
7,E-Bike
8,ADAS
9,Automotive displays
