Product Details:
|
| Name: | 3.54 Inch Round TFT Display | Resolution: | 800x640 |
|---|---|---|---|
| Outline Dimension: | 97.6*83.79*4.0 Mm | Active Area: | 90x72mm |
| Interface: | 3SPI+18Bit RGB | Viewing Angle: | 85/85/85/85 |
| Brightness: | 1000 Cd/m2 | Display Mode: | Normally Black |
| Viewing Direction: | ALL/IPS | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 800x640 Round TFT Display,Round TFT Display 3.54 inch,SPI TFT Display 1000 Cd/M2 |
||

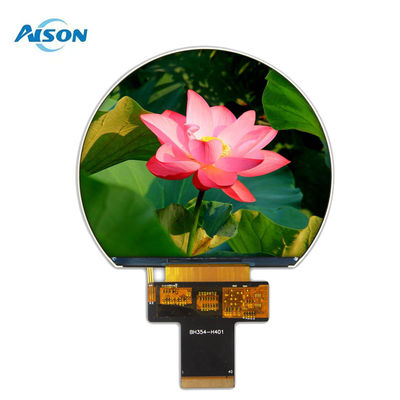

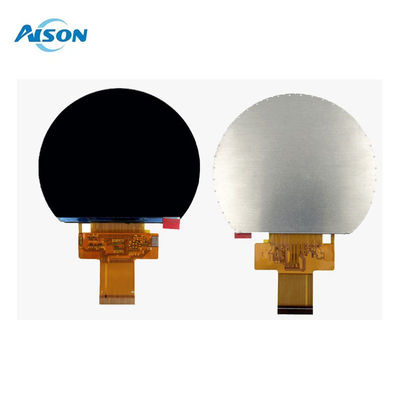

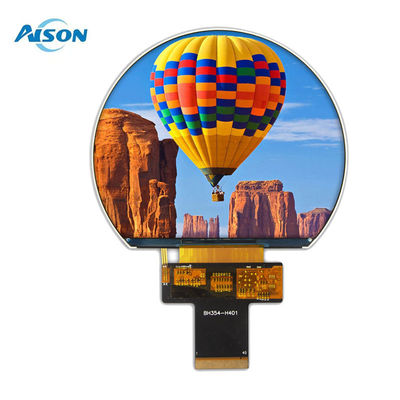

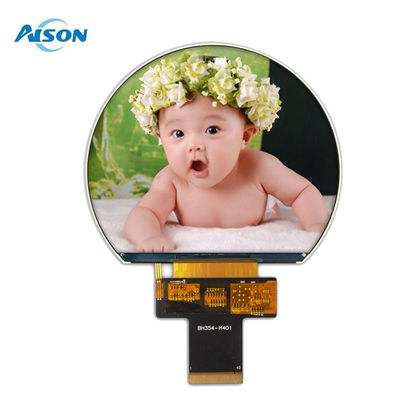

3.54 Inch 800x640 Round TFT Display SPI TFT Display 1000 Cd/M2 With 3SPI+18Bit RGB Interface
Introducing the 3.54-inch TFT LCD display, a compact yet high-performance solution for modern applications. Featuring a sleek, space-saving design, this round display combines exceptional visual quality with a resolution of 800x640 pixels, delivering crisp, vibrant imagery in a full-view format. Its slim profile and vivid color reproduction make it an ideal choice for a wide range of electronic devices.
This 3.54 inch round display is perfect for dashboards, smart home systems, industrial machinery, and other equipment requiring reliable and visually appealing flat panel displays. This display excels in environments where space is limited but image clarity and visual impact are critical.
| Product Name | 3.54 inch Lamp-shape display |
| Number of Pixel | 800x640 |
| Interface | 3SPI+18 Bit RGB |
| Luminance(cd/m2) | 1000cd/m2 |
| Active area | 90x72mm |
| LCM (W x H x D) | 97.6*83.79*4.0 mm |
| Viewing Direction(eye) | ALL/IPS |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Product Applications
1,Handheld devices
2,Car GPS
3,POS device
4,Smart Home
5,Remote Control device
6,Gauge
7,E-Bike
8,ADAS
9,Automotive displays
