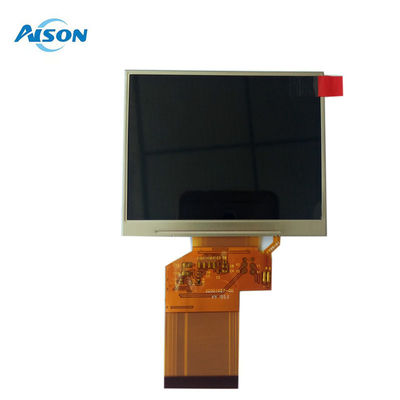

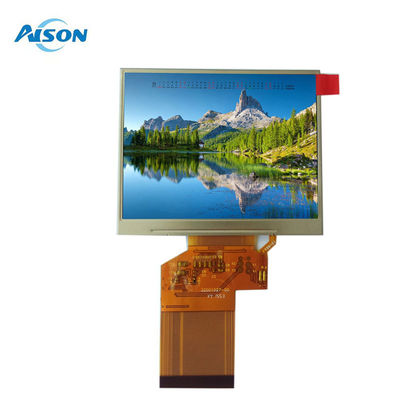

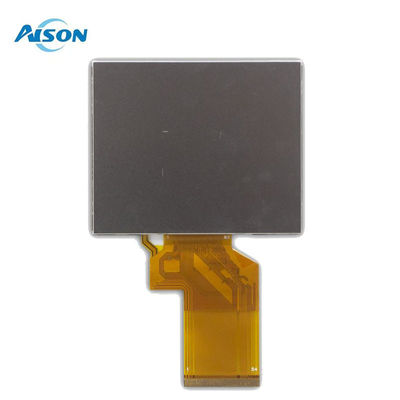

3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface

3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface 3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface 3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface

Large Image :  3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z035VG06
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton/Blister
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface

Description
Name: 3.5 Inch IPS TFT LCD Display Resolution: 640x480
Outline Dimension: 76.90*63.9*3.26mm Active Area: 70.08 X 52.56mm
Interface: MCU/RGB Viewing Angle: 80/80/80/80
Brightness: 1000cd/m2 Display Mode: TFT,Normally Black
Contrast Ratio: 800:1 IC Or Equivalent: NV3052C
Connection: Plug-in FPC Operating Temperatures: -20 To 70 Degree
Storage Temperatures: -30 To 80 Degree
Highlight:

3.5 Inch IPS TFT LCD Display

,

IPS TFT LCD Display 640x480

,

TFT LCD Capacitive Touchscreen 1000 Cd/M2

3.5 inch IPS Full Viewing 640x480 TFT Display with RGB Interface



Display General Description
Z035VG06 is 640x480 pixels 3.5 inch IPS tft lcd display with driver NV3052C,RGB interface.It's optional capacitive touch panel with controller, resistive touch panel,FPC connector,superior display quality,full view angle.Easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM.

The IPS panel has the advantage of wide viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical). Z035VG06 can operate at temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃. .


General Data

Model Name 3.5 inch IPS TFT Display
Resolution 640x480
Model Size (W*H*T) 76.90*63.9*3.26mm
Display Area (W*H) 70.08 x 52.56mm
Interface RGB
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 1000 cd/m2
Pin number 54 pin
Driver IC NV3052C
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃




Drawing


3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface 0



Product Details



3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface 13.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface 2







TFT Applications



This 3.5 inch IPS TFT Display can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface.





3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface 3
