Product Details:
|
| Product Name: | 15.6 Inch 1920x1080 TFT Display | Resolution: | 1920x1080 |
|---|---|---|---|
| Module Size: | 384.16*253.58*11.6 Mm | Active Area: | 344.16 (H) ×193.59 (V) Mm |
| Interface Type: | LVDS | Luminance: | 1000 Cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Display Type: | Normally Black | Touch: | PCAP Touch |
| Highlight: | High Resolution LCD Module,LCD Module 15.6 Inch,LCD Touch Display Module 1920x1080 |
||

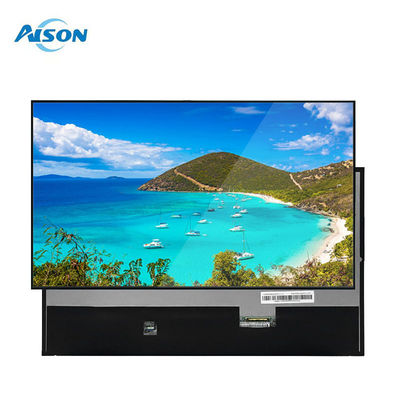

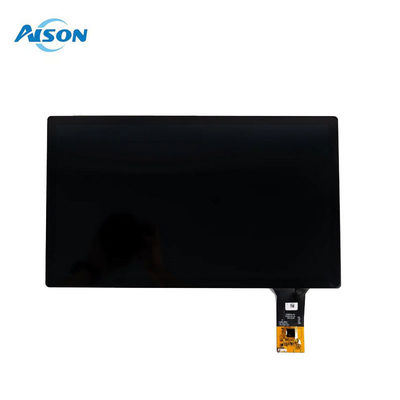

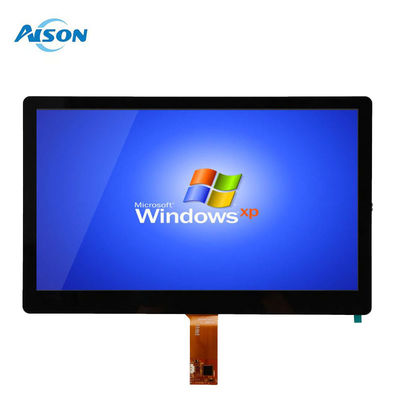

High Resolution 15.6 inch TFT LCD Display Module with PCAP Touch LVDS Interface
Introducing the Z156FH03-CT: a high-performance 15.6-inch high-resolution TFT LCD display module designed to deliver exceptional visual clarity and functionality. This advanced display module features a resolution of 1920x1080 pixels, supported by PCAP touch technology, ensuring precise and responsive interaction.
The module is equipped with a built-in TC2055G driver IC, enabling seamless integration and operation via the LVDS interface. Measuring 384.16 x 253.58 mm in outline dimensions, with an active area of 344.16 x 193.59 mm, this display leverages IPS technology to provide an impressive 85-degree viewing angle in all directions (left, right, up, down), ensuring optimal visibility from any angle.
Boasting a high contrast ratio of 800:1 (typical) and a brightness of 1000 nits (typical), this module delivers vibrant and vivid visuals, enhancing the overall user experience. The integrated projected capacitive touch panel (PCAP) with ILI2511 IC supports USB and I2C interfaces, along with 10-point touch functionality, further elevating its usability and versatility.
Engineered for reliability and durability, the Z156FH03-CT operates within a power voltage range of 3.0V to 3.6V (typical: 3.3V) and is designed to withstand a wide range of environmental conditions. Its operating temperature range of -20°C to +70°C, and storage temperature range of -30°C to +80°C, makes it ideal for various applications, including industrial machinery, HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems.
With its robust performance, wide viewing angles, and advanced touch capabilities, the Z156FH03-CT is a reliable and high-quality solution for demanding applications.
General Data
| Model Name | 15.6 inch PCAP TFT Display with LVDS |
| Resolution | 1920x1080 |
| Model Size (W*H*T) |
384.16*253.58*11.6 mm
|
| Display Area (W*H) | 344.16 (H) ×193.59 (V) mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 1000 cd/m2 |
| Pin number | 30 pin |
| Touch |
with Capacitive Touch Panel
|
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details

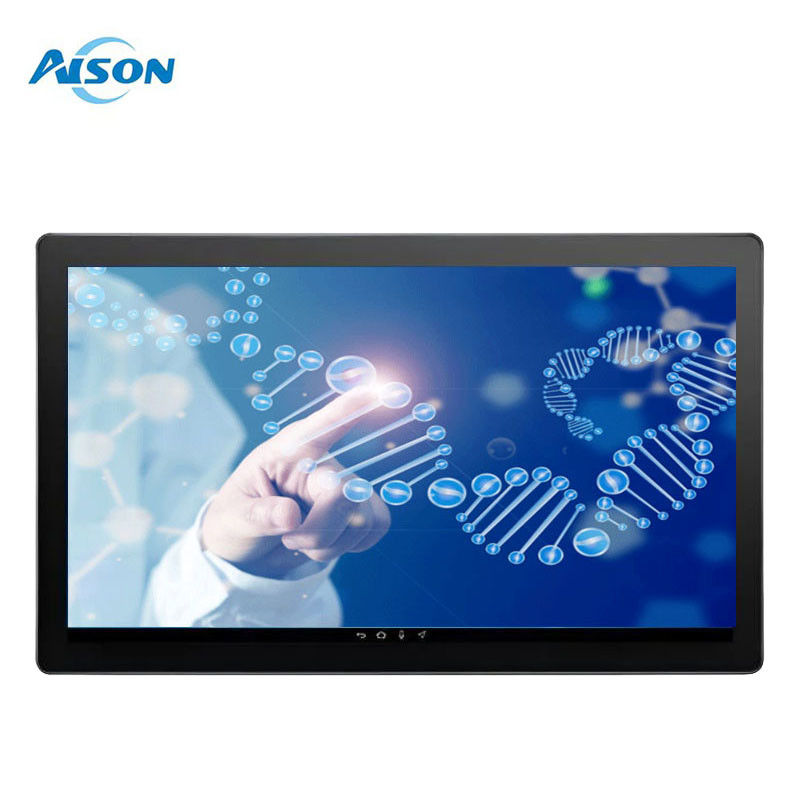

TFT Applications
From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
