Product Details:
|
| Name: | 15.6 Inch TFT Capacitive Touch Screen | Resolution: | 1920x1080 |
|---|---|---|---|
| Outline Dimension: | 384.16*253.58*11.6 Mm | Active Area: | 344.16 (H) ×193.59 (V) Mm |
| Interface: | LVDS | Brightness: | 900 Cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Display Mode: | TFT,Normally Black | Touch: | With Captouch |
| Highlight: | 15.6 Inch TFT Capacitive Touch Screen,TFT Capacitive Touch Screen 1920x1080,PCAP Touch Display Industrial |
||

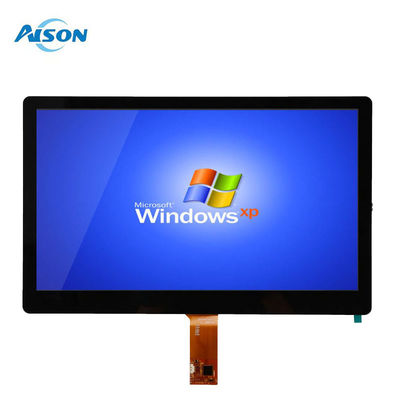

15.6 inch LVDS PCAP Touch TFT LCD Display 1920x1080 for Industrial Application
General Description
Z156FH03-CT is a 15.6-inch high resolution TFT LCD display module boasting a resolution of 1920x1080 pixels and PCAP touch functionality. This high resolution TFT LCD display module features a built-in TC2055G driver IC and supports LVDS interface. With outline dimensions of 384.16*253.58 mm and an active area size of 344.16 x 193.59 mm, it utilizes IPS technology to deliver a wider viewing angle of 85 degrees in all directions (Left: 85 / Right: 85 / Up: 85 / Down: 85).
With a high contrast ratio of 800:1 (typical value) and a brightness of 1000 nits (typical value), this model ensures vivid and clear visuals, enhancing the user experience. Additionally, the module adopts a projected capacitive touch panel (PCAP) with ILI2511 IC, which supports USB and I2C interfaces and 10-point touch, further elevating its usability and functionality.
Operating within a power voltage range of 3.0V to 3.6V (typical value: 3.3V), this module is designed to withstand various environmental conditions. Its operating temperature ranges from -20°C to +70°C, while the storage temperature extends from -30°C to +80°C, making it suitable for a wide range of applications. From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
General Data
| Model Name | 15.6 inch LVDS PCAP Touch TFT LCD Display |
| Resolution | 1920x1080 |
| Model Size (W*H*T) |
384.16*253.58*11.6 mm
|
| Display Area (W*H) | 344.16 (H) ×193.59 (V) mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 1000 cd/m2 |
| Pin number | 30 pin |
| Touch |
with Capacitive Touch Panel
|
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing

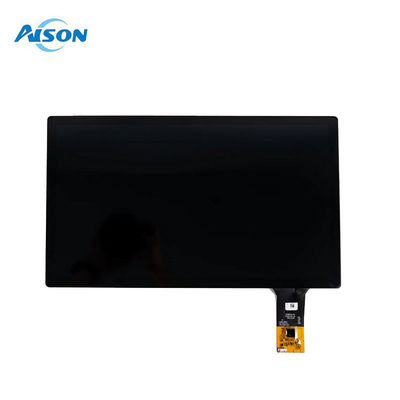

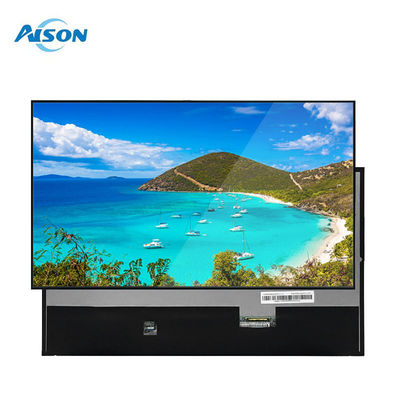

Product Details

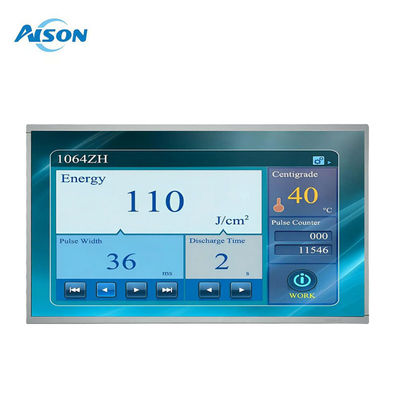

TFT Applications
From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
