480x272 HMI LCD Display 4.3 Inch Resistive Touch Display 4 pin

Large Image : 480x272 HMI LCD Display 4.3 Inch Resistive Touch Display 4 pin

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	NX4827P043-011R

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T
Supply Ability:	200k/month

Contact Now

480x272 HMI LCD Display 4.3 Inch Resistive Touch Display 4 pin

Description

Name:	HMI LCD Display	Resolution:	480x272
Outline Dimension:	120mm(L)X74mm(W)X6.6mm(H)	Display Color:	65536
Interface:	HMI	Brightness:	300cd/m2
Display Mode:	Normally White	Operating Temperatures:	-20 To 70 Degree
Storage Temperatures:	-30 To 80 Degree	Touch Panel:	RTP
Flash:	128MB	RAM:	512 KB
MCU:	200 MHZ	GPIOS:	8
RTC:	Yes
Highlight:	480x272 HMI LCD Display , HMI LCD Display 4.3 Inch , Resistive Touch Display 4 pin

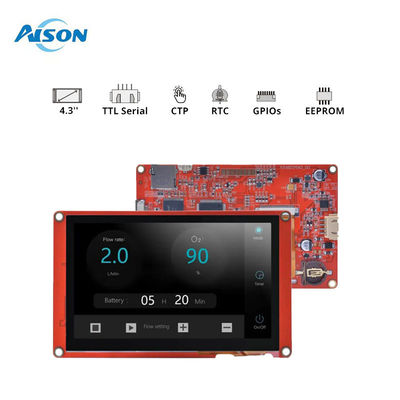

4.3 inch HMI LCD Display Module Resistive touch Display NX4827P043-011R

Description:
* 4.3” LCD-TFT HMI display module

* 480 x 272 screen resolution

* RGB 65K true-to-life colours

* Capacitive or Resistive touch panel

* 300 nit Brightness

* Onboard 200MHz MCU

* 512 KB of SRAM

* 128 MB of Flash memory

* 1024 Byte EEPROM * XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

* 1.25T-2-2A Audio port for external speaker connection

* 8 Digital extended GPIO (IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)

* Built-in RTC support

Package includes:
1 X 4.3" Nextion Intelligent HMI Display (NX4827P043-011R)
1 X Micro USB to 2P Connector Board
1 X 4-Pin Grove Cable

Specification:
