4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2

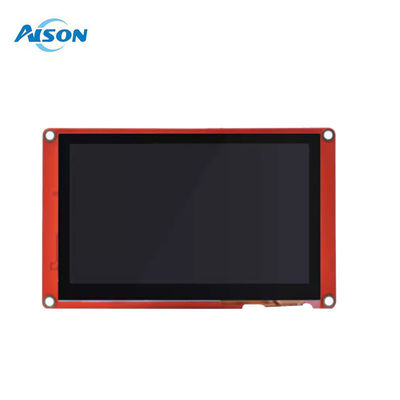

Large Image : 4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	NX4827P043-011C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T
Supply Ability:	200k/month

Contact Now

4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2

Description

Name:	4.3 Inch Nextion Intelligent HMI Display	Dot Matrix:	480x272
Outline Dimension:	120mm(L)X74mm(W)X6.6mm(H)	Display Color:	65536
Interface:	HMI	Brightness:	300cd/m2
Display Type:	Normally White	Operating Temperatures:	-20 To 70 Degree
Storage Temperatures:	-30 To 80 Degree	Touch Screen:	CTP
Flash:	128MB	RAM:	512 KB
MCU:	200 MHZ	GPIOS:	8
RTC:	Yes
Highlight:	4.3 Inch Nextion Intelligent HMI Display , Nextion Intelligent HMI Display 480x272 , Touch Display Module 300 Cd/M2

4.3 inch Nextion Intelligent Series HMI TFT Touch Display Module NX4827P043-011C

Product Description:

Introducing our high-performance 4.3" LCD-TFT Human Machine Interface (HMI) Display Module, designed for seamless integration into a wide range of applications. This compact and feature-rich module combines advanced display technology with powerful processing capabilities to deliver an exceptional user experience.

Display Features:

4.3-inch LCD-TFT display with a high-resolution 480 x 272 pixel format
Vivid RGB 65K true-to-life colors for stunning visual output
Choice of capacitive or resistive touch panel for versatile interaction
Brightness: 300 nits, ensuring clear visibility in various lighting conditions

Processing Power:

Built-in 200MHz MCU for smooth and responsive operation
Memory: 512 KB SRAM, 128 MB Flash, and 1024 Byte EEPROM for ample storage and data retention

Connectivity & Expandability:

XH2.54 4-pin TTL serial interface (+5V, TX, RX, GND) for easy connectivity
1.25T-2-2A audio port for external speaker integration
8 digital extended GPIO pins (IO0-IO7) with support for input, output, and event binding; IO6-IO7 additionally support PWM functionality

Additional Features:

Built-in RTC (Real-Time Clock) for accurate timekeeping
Compact and lightweight design, ideal for space-constrained applications

This module is perfect for industrial, automotive, and consumer electronics applications where a reliable, user-friendly interface is essential.

Package includes:
1 X 4.3" Nextion Intelligent HMI Display (NX4827P043-011C)
1 X Micro USB to 2P Connector Board
1 X 4-Pin Grove Cable

Specification:
