Product Details:
|
| Display Name: | 7 Inch RGB TFT LCD Module | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 164.9*100.0*5.7mm | Active Area: | 154.08 X 85.92mm |
| Interface Type: | 24 Bit RGB | Luminance: | 450cd/m2 |
| WorkingTemperature: | -20~70℃ | Storage Temperature: | -30~80℃ |
| Highlight: | 7 Inch TFT LCD Module,TFT LCD Module 50 Pin,50 Pin LCD Display 800x480 |
||
7 inch TFT LCD Module RGB 24 Bit 50 Pin 800x480 for Industrial Application

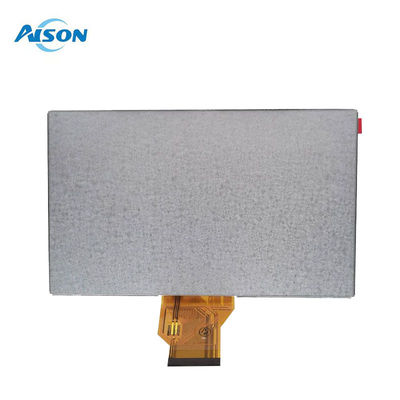

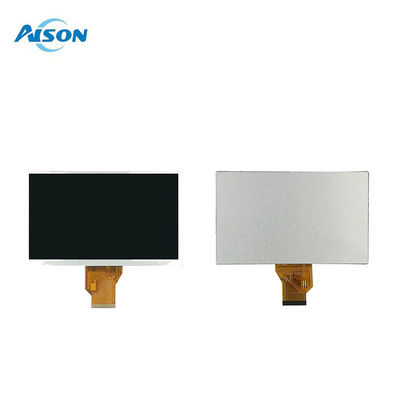

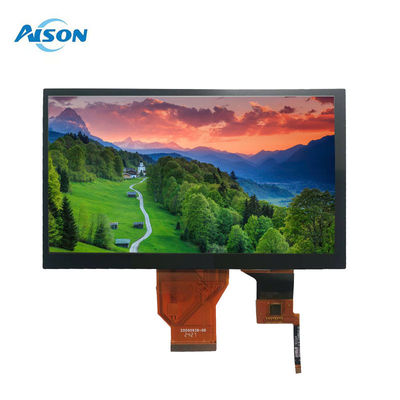

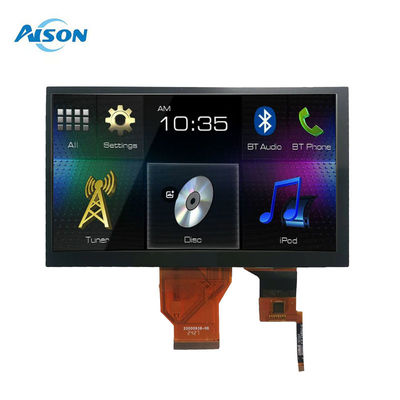

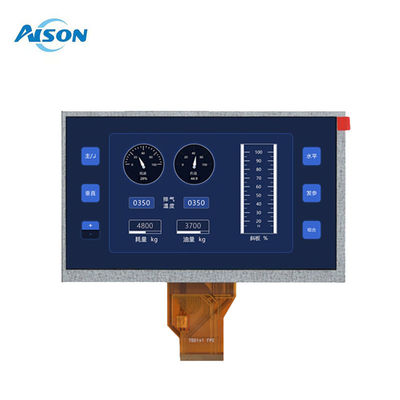

Product Description: Z070TN92 7-inch TFT LCD Module
The Z070TN92 is a high-performance 7-inch color TFT LCD module designed for a wide range of applications. With a resolution of 800x480 pixels and a diagonal size of 7 inches, this module offers crisp and vibrant visuals. Its compact dimensions of 165 x 100 mm and an active area of 154.08 x 85.92 mm make it ideal for space-constrained designs.
Key Features:
Applications: The 7 inch lcd module display Z070TN92 is well-suited for industrial control equipment, testing devices, medical equipment, smart home devices, and other demanding environments. Its versatility and robust design make it a reliable choice for a variety of application scenarios.
This TFT LCD module combines excellent performance with durability, making it an ideal solution for developers and manufacturers seeking a high-quality display component.
General Data
| Model Name | 7 inch TFT Display |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*5.7 mm |
| Display Area (W*H)mm | 154.08 x 85.92mm |
| Interface | RGB |
| Display Type | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 450 cd/m2 |
| Pin number | 50 |
| Interface | RGB |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This 7-inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
