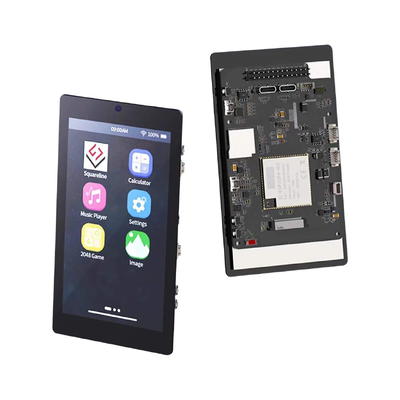

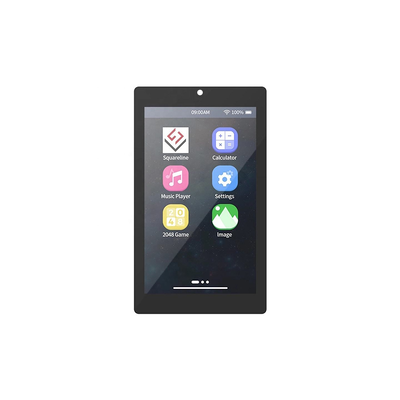

4.3-inch IPS 480X800 ESP32-P4 Development Board with Capacitive Touch Screen ESP32-C6 Dual-Core WiFi & BLE for IoT Applications

Large Image : 4.3-inch IPS 480X800 ESP32-P4 Development Board with Capacitive Touch Screen ESP32-C6 Dual-Core WiFi & BLE for IoT Applications

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	JC4880P443C_I_W_Y

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister/Box
Payment Terms:	T/T, Western Union, ,Paypal
Supply Ability:	200K/M

Contact Now

4.3-inch IPS 480X800 ESP32-P4 Development Board with Capacitive Touch Screen ESP32-C6 Dual-Core WiFi & BLE for IoT Applications

Description

Name:	4.3 Inch ESP32P4 Module	Resolution:	800x480
Application:	ESP32-P4 Development Board	Driver IC:	ST7701S
Effective Display Area:	93.60 × 56.16 Mm	Module Size:	117.01 × 69.41 Mm
Touch:	With Captouch	Camera:	No Camera,can Add External Camera
Housing:	With Housing	MCU:	ESP32-P4 & ESP32-C6
Development Support:	Arduino IDE, ESP IDF, MicroPython, Guition
Highlight:	ESP32-P4 development board 4.3-inch , ESP32 display module capacitive touch , ESP32-C6 dual-core WiFi BLE IoT

4.3-inch IPS 480X800 ESP32-P4 Development Board with Capacitive Touch Screen ESP32-C6 Dual-Core WiFi & BLE for IoT Applications

Product description

Model: JC4880P443C_I_W
This LCD module uses ESP32-P4 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 360MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M PSRAM,Flash size is 16MB, The display resolution is 480*800, Capacitive touch. The module includes 4.3 inch LCD display screen, backlight control circuit,
touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.

Applications

This versatile ESP32P4 display fits perfectly into numerous industries and applications:

3D Printers: Instinctive control interfacing with real-time status monitoring
Medical Hardware: Clear quiet information visualization and gadget control
Smart Domestic Frameworks: Rich control boards for lighting, climate, and security
Industrial Computerization: Vigorous HMI arrangements for fabricating equipment
EV Charging Stations: User-friendly installment and charging status displays
Audio Hardware: Professional-grade control interfacing with visual feedback
Commercial Kitchen Apparatuses: Temperature and timing controls with formula displays
Air Quality Screens: Real-time information visualization with slant analysis
Massage and Excellence Gear: Treatment control with customer-facing information
Security Frameworks: Get to control and checking interfaces
Handheld Gadgets: Versatile test hardware and demonstrative tools
Warehouse Administration: Stock following and coordinations control

Technical Specifications

Parameter	Details
Brand	GUITION
Model	JC4880P443C_I_W
Screen Size	4.3 inch
Display Type	IPS TFT
Resolution	480 × 800 pixels
MCU	ESP32-P4 & ESP32-C6
CPU Frequency	Up to 360MHz (Dual-core)
Memory	768KB HP L2MEM, 32KB LP SRAM, 128KB HP ROM
PSRAM	32MB
Flash	16MB
Touch Type	Capacitive touch
Driver Chip	ST7701S
Color Depth	24-bit RGB (16.7M colors)

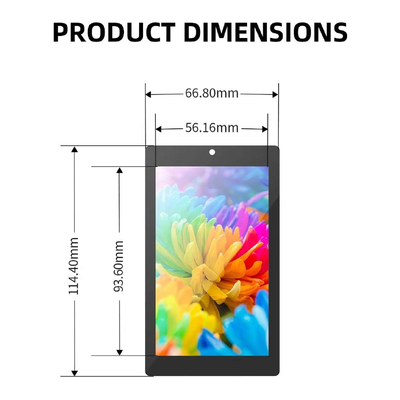

Effective Display Area	93.60 × 56.16 mm
Module Dimensions	117.01 × 69.41 mm
Viewing Angle	IPS (Full viewing angle)
Operating Voltage	5V DC
Power Consumption	Approximately 320mA
Operating Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃
Connectivity	Wi-Fi, Bluetooth
Expansion	TF card slot, IO port interface
Development Support	Arduino IDE, ESP IDF, MicroPython, Guition
