7 Inch ESP32 P4 C6 Capacitive Touchscreen Development Board 1024x600 IPS LCD Display with 2MP Camera 100Mbps Ethernet Port

Large Image : 7 Inch ESP32 P4 C6 Capacitive Touchscreen Development Board 1024x600 IPS LCD Display with 2MP Camera 100Mbps Ethernet Port

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	JC1060P470C_I_W_Y

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister/Box
Payment Terms:	T/T, Western Union, ,Paypal
Supply Ability:	200K/M

Contact Now

7 Inch ESP32 P4 C6 Capacitive Touchscreen Development Board 1024x600 IPS LCD Display with 2MP Camera 100Mbps Ethernet Port

Description

Name:	7.0 Inch ESP32P4 Module	Resolution:	1024x600
Application:	ESP32-P4 Development Board	Driver IC:	JD9165

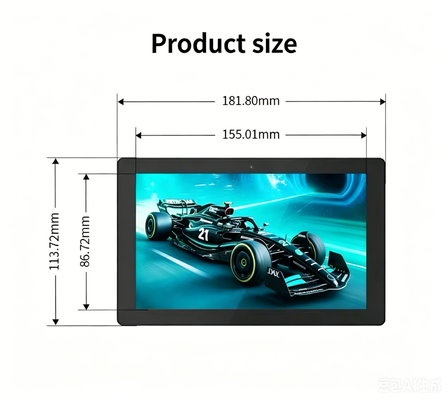

Effective Display Area:	155.01* 86.72(mm)	Module Size:	181.80*113.72(mm)
Touch:	With Captouch	Camera:	With Camera
Housing:	With Housing	Connectivity:	WiFi, Bluetooth
Expansion:	TF Card Slot, IO Port Interface	Operating Voltage:	5V
Highlight:	7 Inch ESP32 P4 Touchscreen , 1024x600 IPS LCD Display , ESP32 Display Module with Camera

7 Inch ESP32 P4 C6 Capacitive Touchscreen Development Board 1024x600 IPS LCD Display with 2MP Camera 100Mbps Ethernet Port

Product description

This LCD module uses ESP32-P4 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 400MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M PSRAM,Flash size is 16MB, The display resolution is 1024*600, without touch or Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.

Features

●7.0-inch color screen, support 24 BIT RGB 16.7M color display, display rich colors

●1024X600 resolution

●The sample program has been programmed in the factory and can be plugged in

●With TF card slot for easy expansion storage

●Provide arduino library functions and sample programs to facilitate rapid secondary development

●Support one-click download program

●Lithium battery interface circuit

●Industrial-grade process standards, long-term stable work

Technical Specifications

Parameter	Details
Item	7 inch ESP32 P4 C6 Display
Model	JC1060P470C_I_W_Y
Screen Size	7.0 inch
Display Type	IPS TFT
Resolution	1024×600 (Pixel)
MCU	ESP32-P4 & ESP32-C6
Processor Frequency	360MHz Dual-core
Memory	768KB HP L2MEM, 32KB LP SRAM, 128KB HP ROM
PSRAM	32MB
Flash	16MB
Touch Type	Capacitive Touch
Driver Chip	JD9165
Color Support	24-bit RGB (16.7M colors)
Effective Display Area	154.21×85.92mm
Module Size	181.80×113.72mm
Viewing Angle	IPS Full Viewing
Operating Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃
Operating Voltage	5V
Power Consumption	Approximately 600mA
Shell	Included
Connectivity	WiFi, Bluetooth

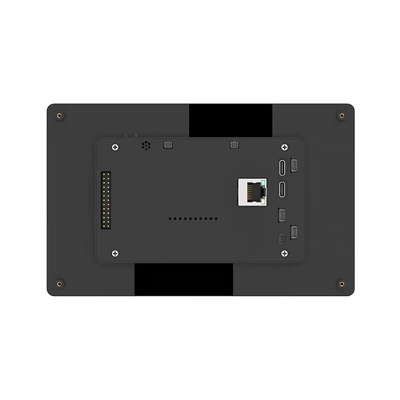

Interfaces	TF card slot, IO ports, Lithium battery interface

Applications

Our 7 inch ESP32P4 display module fits perfectly into diverse industries:

Industrial Robotization: Control boards, gear screens, prepare displays
3D Printing: Client interfacing for printer control and status monitoring
Medical Gadgets: Quiet screens, symptomatic gear interfaces
Smart Domestic Frameworks: Central control boards, security displays
Automotive: Dashboard rebellious, charging heap interfaces
Commercial Gear: Kitchen displays, POS frameworks, sound gear controls
Environmental Observing: Discuss quality discovery displays
Energy Administration: Sun based controller interfacing, battery administration systems

7 Inch ESP32 P4 C6 Capacitive Touchscreen Development Board 1024x600 IPS LCD Display with 2MP Camera 100Mbps Ethernet Port
