10.1-inch 800x1280 TFT LCD Module ESP32P4 Development Board Display Supports Xiaozhi ESP32 C6 Capacitive Touch Screen

Large Image : 10.1-inch 800x1280 TFT LCD Module ESP32P4 Development Board Display Supports Xiaozhi ESP32 C6 Capacitive Touch Screen

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	JC8012P4A1C_I_W_Y1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister/Box
Payment Terms:	T/T, Western Union, ,Paypal
Supply Ability:	200K/M

Contact Now

10.1-inch 800x1280 TFT LCD Module ESP32P4 Development Board Display Supports Xiaozhi ESP32 C6 Capacitive Touch Screen

Description

Name:	10.1-inch ESP32 P4 C6 Smart Display	Resolution:	800x1280
Application:	ESP32-P4 Development Board	Driver IC:	JD9365
Effective Display Area:	216.58 * 135.36(mm)	Module Size:	242.80 * 158.70(mm)
Touch:	With Captouch	Camera:	With Camera
Housing:	With Housing	Speaker And Battery:	Optional
Connectivity:	WiFi, Bluetooth	Expansion:	TF Card Slot, IO Port Interface
Highlight:	ESP32P4 10.1-inch TFT LCD Module , 800x1280 Capacitive Touch Screen Display , ESP32 Display Module with ESP32 C6

10.1-inch 800x1280 TFT LCD Module ESP32P4 Development Board Display Supports Xiaozhi ESP32 C6 Capacitive Touch Screen

Model: JC8012P4A1C_I_W_Y/C8012P4A1C_I_W_Y1
JC8012P4A1C_I_W_Y LCD module uses ESP32-P4 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 360MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M PSRAM,Flash size is 16MB, The display resolution is 800*1280, without touch or
Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.

10.1 Inch ESP32P4 Display Module - Advanced HMI Solution for Your Next Project

Looking for a powerful display solution that combines high performance with easy development? Our 10.1 inch esp32p4 display module delivers exactly what you need. This progressed HMI module highlights the cutting-edge ESP32-P4 dual-core MCU running at 360MHz, matched with a dazzling 800×1280 IPS display. Whether you're building mechanical hardware, shrewd gadgets, or IoT applications, this display module offers the idealize adjust of execution and flexibility. With built-in WiFi and Bluetooth network, you can effectively coordinated it into your associated items without additional complexity.

Size	10.1 inch ESP32 P4 Development Board
Resolution	800x1280

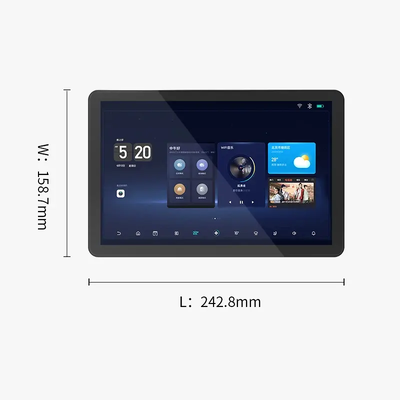

Outline size	242.80 * 158.70(mm)
Active Area	216.58 * 135.36(mm)
Viewing Direction	Full HD View
Panel Type	TFT+IPS
Brightness	300 cd/m2
Interface	UART
Touch	Capacitive touch

10.1-inch 800x1280 TFT LCD Module ESP32P4 Development Board Display Supports Xiaozhi ESP32 C6 Capacitive Touch Screen

Applications

This versatile 10.1 inch ESP32P4 display module fits perfectly into numerous industries:

3D Printers - Instinctive control interfacing for printer settings and monitoring
Medical Gear - Clear displays for demonstrative and checking devices
Smart Domestic Frameworks - Central control boards for domestic automation
Industrial Robotization - HMI terminals for fabricating equipment
EV Charging Stations - User-friendly charging status and installment interfaces
Automotive Rebellious - Dashboard displays and infotainment systems
Commercial Kitchen Hardware - Control boards for proficient cooking appliances
Security Frameworks - Checking and control interfaces
Audio Gear - Visual input for blending and control systems
Handheld Gadgets - Convenient testing and estimation instruments
