Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: JC8012P4A1C_I_W_Y
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable based on quantity
Packaging Details: Carton/Blister/Box
Payment Terms: T/T, Western Union, ,Paypal
Supply Ability: 200K/M
Contact Now

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI

Description
Name: 10.1-inch ESP32 P4 Touch Display Resolution: 800x1280
Application: ESP32-P4 Development Board Driver IC: JD9365

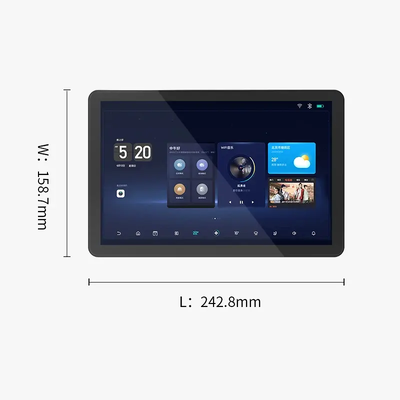

Effective Display Area: 216.58 * 135.36(mm) Module Size: 242.80 * 158.70(mm)
Touch: With Captouch Camera: With Camera

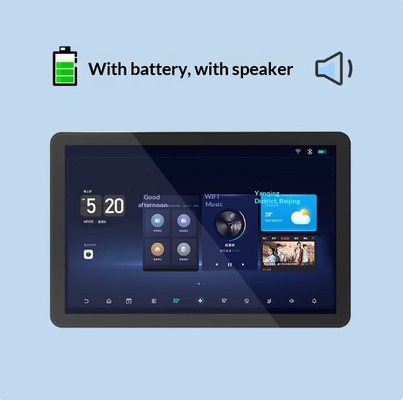

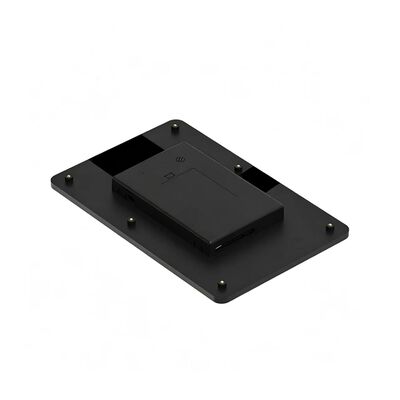

Housing: With Housing Speaker And Battery: Optional
Highlight:

ESP32 P4 Development Board TFT

,

10.1-inch Capacitive Touch Display

,

ESP32 C6 LVGL Development Module

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI



  • Model: JC8012WP4A1C_I_W
  • This LCD module uses ESP32-P4 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 400MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M PSRAM,Flash size is 16MB, The display resolution is 800*1280, without touch or Capacitive touch.
  • The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.



Size
10.1 inch ESP32 P4 Development Board
Resolution
800x1280
Outline size
242.80 * 158.70(mm)
Active Area
216.58 * 135.36(mm)
Viewing Direction
Full HD View
Panel Type
TFT+IPS
Brightness
300 cd/m2
Interface
UART
Touch
Capacitive touch



10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI

10.1-inch ESP32 P4 Development Board TFT Display Capacitive Touch Screen LVGL Development ESP32 C6 Supports Xiaozhi AI
