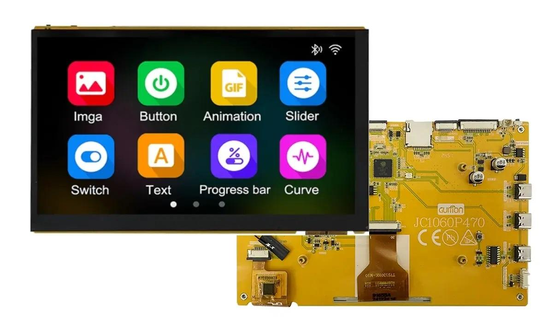

7-Inch ESP32 P4 Development Board With LCD Display And Onboard ESP32-C6 Capacitive Touch

Large Image : 7-Inch ESP32 P4 Development Board With LCD Display And Onboard ESP32-C6 Capacitive Touch

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	JC1060P470C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister/Box
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200K/M

Contact Now

7-Inch ESP32 P4 Development Board With LCD Display And Onboard ESP32-C6 Capacitive Touch

Description

Name:	7 Inch ESP32-P4 TFT Module	Resolution:	1024X600
Application:	ESP32-P4 Development Board	Driver IC:	JD9165
Effective Display Area:	154.21* 85.92(mm)	Module Size:	165.0*104.0(mm)
Touch:	With Captouch	Operating Voltage:	5vV
Highlight:	7-inch ESP32 P4 development board , ESP32-C6 capacitive touch display , ESP32 LCD display module

7-Inch ESP32 P4 Development Board With LCD Display And Onboard ESP32-C6 Capacitive Touch

Product description

This LCD module uses ESP32-P4 module as the main control, the main control is
a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can
reach 400MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M
PSRAM,Flash size is 16MB, The display resolution is 1024*600, without touch or
Capacitive touch. The module includes LCD display screen, backlight control circuit,
touch screen control circuit . Reserve the TF card interface ,IO port interface, this
module supports development in arduino IDE, ESP IDE, Micropython and Guition.

Features
●7.0-inch color screen, support 24 BIT RGB 16.7M color display, display
rich colors
●1024X600 resolution
●The sample program has been programmed in the factory and can be
plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate
rapid secondary development
●Support one-click download program
●Lithium battery interface circuit
●Industrial-grade process standards, long-term stable work

Applications

The 7 inch ESP32 P4 Smart displays have a wide range of applications:

3D Printers: Give clear status displays and natural touch controls
Medical Hardware: Provide solid interfacing for symptomatic nd observing devices
Smart Domestic Frameworks: Make locks in control boards for computerization solutions
Automotive Rebellious: Construct responsive dashboards and data displays
EV Charging Stations: Offer user-friendly charging status and installment interfaces
Industrial Mechanization: Coordinated into control boards and observing systems
Security Hardware: Display observation nourishes and get to control interfaces
Commercial Kitchen Hardware: Give temperature and timing controls
Audio Hardware: Make intelligently control surfaces for proficient gear
Handheld Gadgets: Control convenient rebellious and testing equipment

Size	7 inch
Resolution	1024 x 600
Outline size	164.9x 104 mm
Active Area	154.08 x 85.92 mm
Viewing Direction	Full HD View
Panel Type	TFT+IPS
Brightness	300 cd/m2
Interface	UART
Touch	Capacitive touch

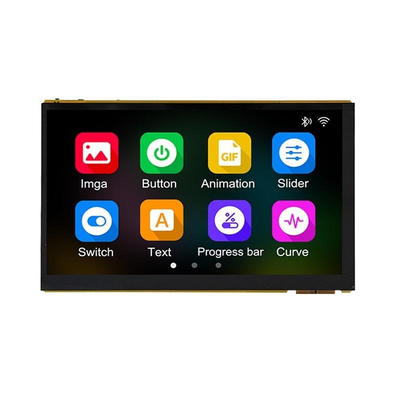

7-Inch ESP32 P4 Development Board With LCD Display And Onboard ESP32-C6 Capacitive Touch 0

7-Inch ESP32 P4 Development Board With LCD Display And Onboard ESP32-C6 Capacitive Touch 4

7-Inch ESP32 P4 Development Board With LCD Display And Onboard ESP32-C6 Capacitive Touch 5
