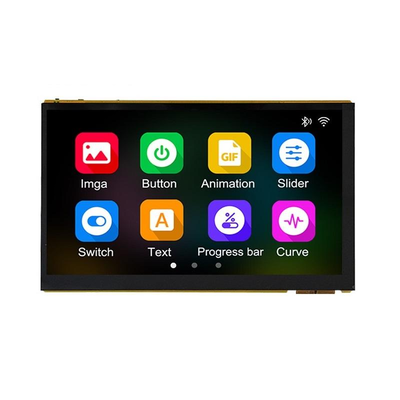

7 Inch 1024x600 IPS LCD Display ESP32 P4 Development Board Capacitive Touch Display Onboard ESP32-C6 ForArduino ESP IDE

Large Image : 7 Inch 1024x600 IPS LCD Display ESP32 P4 Development Board Capacitive Touch Display Onboard ESP32-C6 ForArduino ESP IDE

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	JC1060P470C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister/Box
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200K/M

Contact Now

7 Inch 1024x600 IPS LCD Display ESP32 P4 Development Board Capacitive Touch Display Onboard ESP32-C6 ForArduino ESP IDE

Description

Name:	7 Inch ESP32 P4 Smart Display	Resolution:	1024X600
Application:	ESP32-P4 Development Board	PCB Board Color:	Yellow
Driver IC:	JD9165	Effective Display Area:	154.21* 85.92(mm)
Module Size:	165.0*104.0(mm)	Touch:	With Captouch
Highlight:	7 inch ESP32 display module , IPS LCD capacitive touch screen , ESP32-C6 development board for Arduino

7 Inch 1024x600 IPS LCD Display ESP32 P4 Development Board Capacitive Touch Display Onboard ESP32-C6 ForArduino ESP IDE

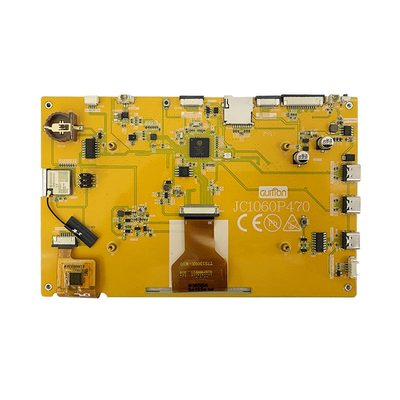

JC1060P470C is an ESP32-P4 board with an integrated 7-inch touchscreen display and an ESP32-C6 WiFi 6 and Bluetooth 5 module providing wireless connectivity. The display also features a microSD card for storage, a MIPI CSI connector to add a camera, a few USB-C ports, and two FPC connectors for GPIO expansion.
It’s a more integrated version of the ESP32-P4-Function-EV-Board that can be used for HMI applications and that is compatible with the GUITION Designer online design tool to create LVGL-based graphical user interfaces.

* Easy development, sufficient development resources

* IPS full viewing Angle panel, good viewing Angle
* Supports external speakers to play audio
* Comes with capacitive touch screen, easy man-machine interaction
* Standard TYPE-C interface for easy program download and power supply
* Equipped with micro TF card slot for easy storage expansion
* Support external lithium battery, lightweight and portable
* Equipped with battery charging management circuit to ensure safe battery charging and discharging
* Provide rich example learning programs, easy to learn
* Provide low-level driver technical support, and update WIKI information online
* Multiple tests for module aging can meet high level standards, supporting long-term stable work

Size	7 inch IPS Screen for ESP32 p4
Resolution	1024 x 600
Outline size	164.9x 104 mm
Active Area	154.08 x 85.92 mm
Viewing Direction	Full HD View
Panel Type	TFT+IPS
Brightness	300 cd/m2
Interface	UART
Touch	Capacitive touch

7 Inch 1024x600 IPS LCD Display ESP32 P4 Development Board Capacitive Touch Display Onboard ESP32-C6 ForArduino ESP IDE 0

7 Inch 1024x600 IPS LCD Display ESP32 P4 Development Board Capacitive Touch Display Onboard ESP32-C6 ForArduino ESP IDE 4

7 Inch 1024x600 IPS LCD Display ESP32 P4 Development Board Capacitive Touch Display Onboard ESP32-C6 ForArduino ESP IDE 5
