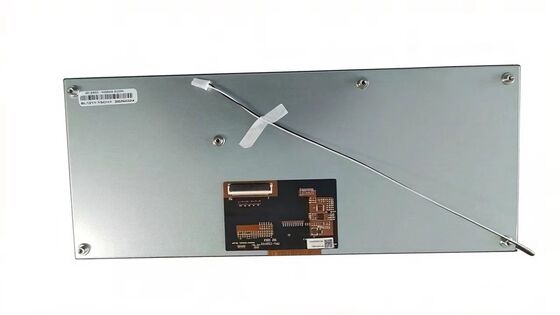

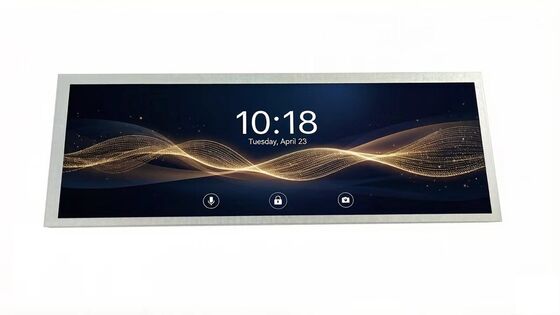

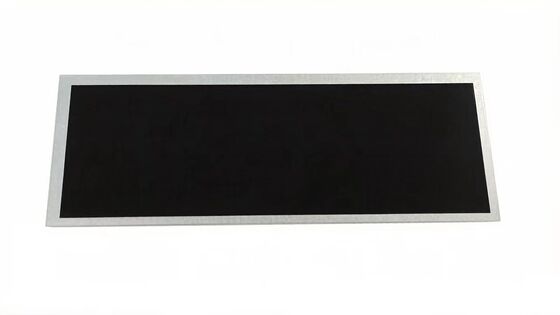

12.3 Inch 1920*720 1000 Nits LVDS Interface Automotive IPS TFT LCD Display

Large Image : 12.3 Inch 1920*720 1000 Nits LVDS Interface Automotive IPS TFT LCD Display

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z123HD01J

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton/Blister
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

12.3 Inch 1920*720 1000 Nits LVDS Interface Automotive IPS TFT LCD Display

Description

Product Name:	12.3 Inch MIPI TFT Display	Resolution:	1920x720
Module Size:	310x128x6.8mm	Active Area:	292.03x 109.5 Mm
LCM Type:	LVDS	Brightness:	1000cd/m2
Operating Temperatures:	-30 To 80 Degree	Storage Temperatures:	-35 To 85 Degree
Display Type:	Normally Black
Highlight:	12.3 Inch Automotive TFT LCD Display , 1920x720 IPS LVDS Display , 1000 Nits Industrial TFT Screen

12.3 Inch 1920*720 1000 Nits LVDS Interface Universal Car Display Automotive TFT LCD Panel

General Description

Z123HD01J is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model iscomposed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 1920*720 pixels and can display up to 16.7M colors.The application is for Universal Car Display Automotive.

General Data

Model Name	12.3 Inch MIPI TFT Display
Resolution	1920x720
Model Size (WHT)	310x128x6.8mm
Display Area (W*H)	292.03x 109.5 mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing Angles	85/85/85/85
Brightness	1000 cd/m2
Pin number	50 pin
Contrast Ratio	1200:1
Operating temperatures	-30 to 80 ℃
Storage temperatures	-30 to 85 ℃

Drawing

12.3 Inch 1920*720 1000 Nits LVDS Interface Automotive IPS TFT LCD Display 0

TFT Application

From Automotive,industrial machinery and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.

12.3 Inch 1920*720 1000 Nits LVDS Interface Automotive IPS TFT LCD Display 1

Solutions:

Industrial Automation, automotive infotainment systems, industrial machinery control panels, EV charger, smart parcel locker, smart home, and interactive kiosks, and other applications that require information display.
