7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC

7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC
7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC
7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC 7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC

Large Image :  7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z076WU01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100k/month
Contact Now

7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC

Description
Name: 7.6 Inch Square TFT LCD Display Resolution: 1200X1200
Outline Dimension: 142.56X148.14X5.1mm Active Area: 135.36x 135.36mm
Interface: MIPI Viewing Angle: 85/85/85/85
Brightness: 1000cd/m2 Display Mode: Normally Black
Operating Temperatures: -10°C~60°C Storage Temperatures: -20℃~ +70℃
HDMI Board: Available Touch: Captouch Available
Highlight:

7.6 inch square TFT LCD display

,

1200x1200 high brightness display module

,

MIPI interface ILI9881C driver display

7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC



Display General Description

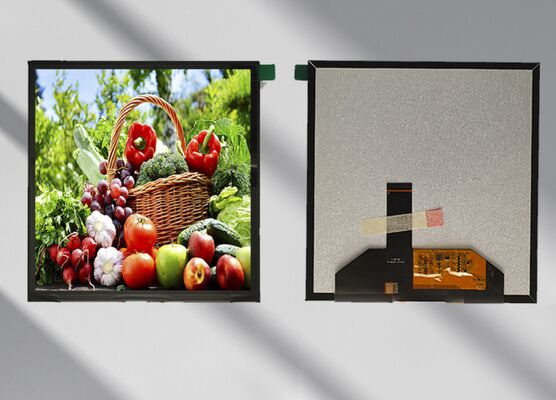

This 7.6 inch square lcd module is equipped with the ILI9881C driver IC and supports MIPI interface.


It has a high 1200x1200 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's high brightness 1000cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

It can be operating at temperatures from -10℃ to +60℃ and storage temperatures from -20℃ to +70℃.



General Data



Item
Specifications
Type
IPS
Module Size
7.6 Inch
Dimensional outline
142.56X148.14X5.1mm
Active area
135.36x 135.36mm
Resolution
1200*1200
Interface
MIPI
Pixel pitch
36.5(H) x 109.5(V)
Pixel Arrangement
RGB Vertical Stripe
Driver IC
ILI9881C
Brightness
1000cd/m2
Display Color
16.7M
Viewing direction
Free
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 75°C
Supplier Type
Manufacturer





Drawing



7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC 0



Product Details



7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC 1





TFT Applications



This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 7.6 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
