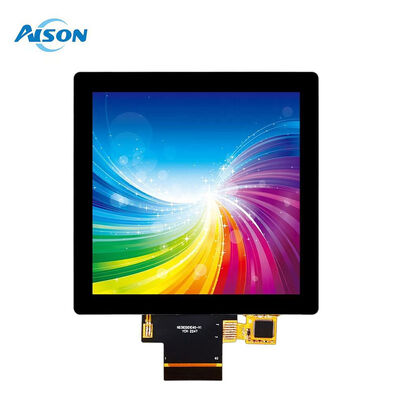

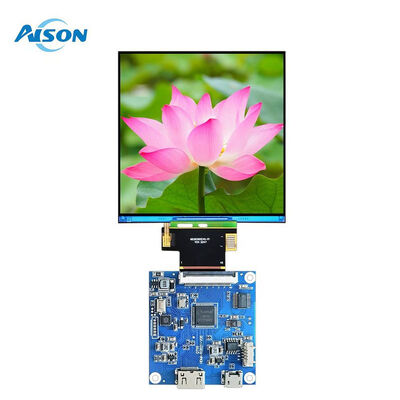

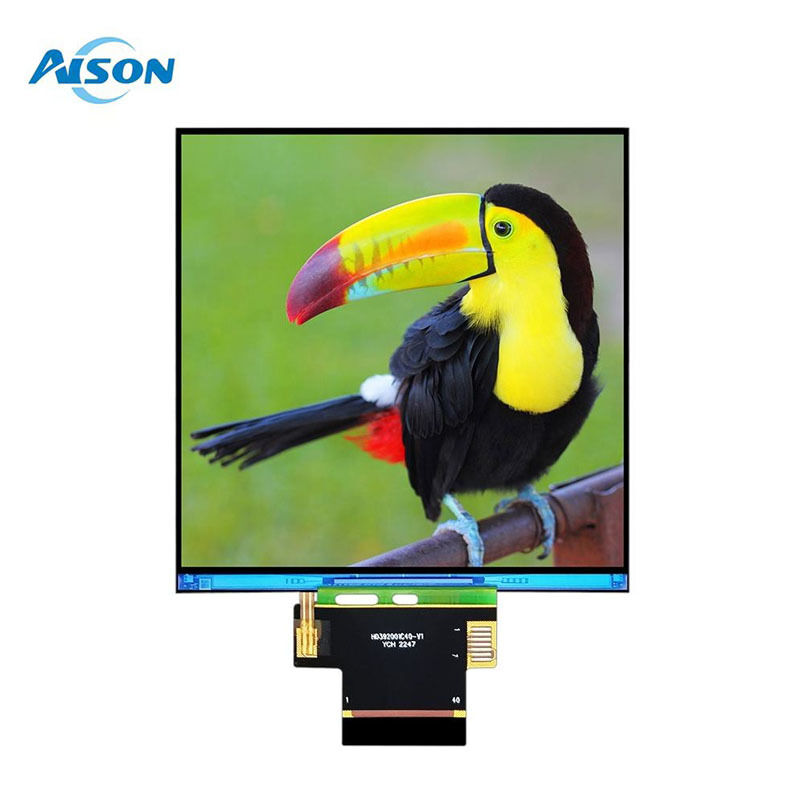

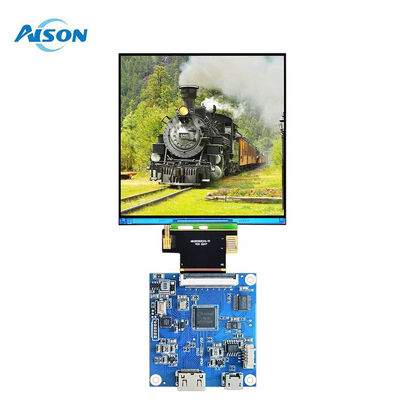

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board
3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board
3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board

Large Image :  3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: HD392001C40-V1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100k/month
Contact Now

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board

Description
Name: 3.92 Inch Square TFT Display Resolution: 320x320
Outline Dimension: 74.66x76.54x2.18mm Active Area: 71.14 X 69.82 Mm
Interface: SPI /MCU Viewing Angles: 80/80/80/80
Luminance: 650 Cd/m2 Display Type: Normally Black
Driver Controller: ST7796 Working Temperatures: -20℃~ +70℃
Storage Temperatures: -30℃~ +80℃
Highlight:

3.92 inch square TFT display

,

320x320 TFT display with HDMI

,

ST7796 driver IC display board

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board



Display General Description



HD392001C40-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.92" contains 320 RGB X320 pixels and can display up to 262K colors.



General Data

Model Name 3.92 Inch Square TFT LCD Display
Resolution 320x320
Model Size (W*H*T)mm 74.66x76.54x2.18mm
Display Area (W*H)mm 71.14 x 69.82 mm
Interface MCU/SPI
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 650 cd/m2
Pin number 40
Drive IC ST7796S
Touch Capacitive Touch Panel
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree









Drawing



3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 0

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 1



Product Details

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 23.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 33.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 4





TFT Applications



This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 3.92 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.







Tag:

Square LCD Display,

Square Touch Display,

Square Touch Screen
