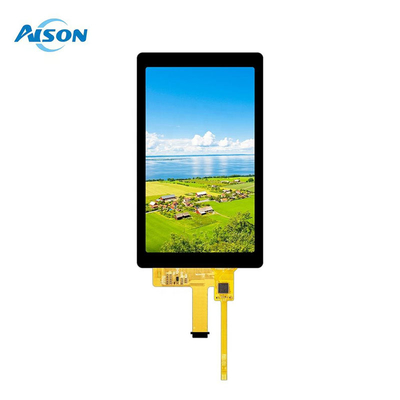

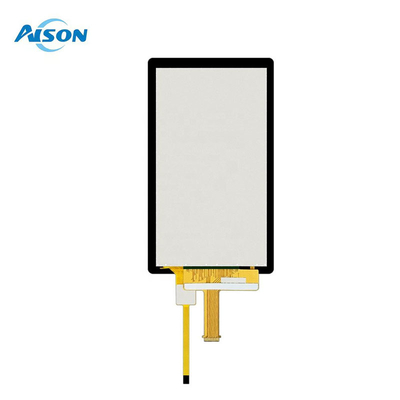

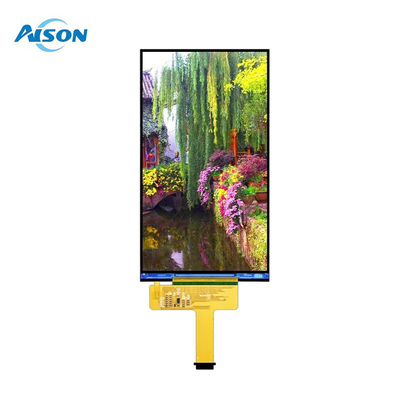

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen

Large Image :  5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: ZHD55017C31
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10~20usd/pc
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen

Description
LCM Name: 5.5 Inch 1080X1920 Capacitive Touchscreen Number Of Dots: 10801x920
LCM Outline Size: 70.84 (H) X128.78 (V)mmx2.7mm Active Area: 68.04 (H) X 120.96 (V)mm
Interface: MIPI Brightness: 350cd/m2
Display Mode: TFT, Normally Black, Transmissive Viewing Direction: ALL/IPS
Operating Temperatures: -20 To 70 ℃ Storage Temperatures: -30 To 80 ℃
Driver IC: JD9522Z
Highlight:

5.5 inch MIPI TFT module

,

1080x1920 resolution LCD display

,

capacitive touch screen TFT

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen



Display General Description
1) Size: 5.5 Inch
2) Resolution: 1080×1920
3) Display Mode: TFT
4) Interface Mode: MIPI 31
5) Brightness: 350 cd/㎡
6) View Angle: All O’clock
7) Driver IC: JD9522Z
8) Operation Temperature: -20~70℃
9) Storage Temperature: -30~80℃

This 5.5-inch IPS TFT display has a resolution up to 1080x1920, is equipped with a MIPI interface, and has a brightness 350cd/m². The effective display area is 68.04 (H) x 120.96 (W) mm, and the overall size is 70.84 (H) x128.78 (V)mmx2.7mm. It is equipped with a capacitive touch screen (CTP), the operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C. It is suitable for special applications in industrial scenarios and supports glove touch and harsh environments.



General Data

Item
Specifications
Type
IPS
Module Size
5.5 inch TFT LCD
Active area
68.04 (H) x 120.96 (V)
Dimensional outline
70.84 (H) x128.78 (V)
Display mode
Trasflective/Transmissive
Touch panel
Capacitive Touch screen
Resolution
1080(H)X1920(V)
Interface
MIPI
LCD Driver IC
JD9522Z
Brightness
330cd/m2
Viewing Angle
ALL O'CLOCK
Backlight
White LED
Operating Temperature
-20°C ~ 70°C
Storage temperatures
-30°C ~ 80°C









Drawing


5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 05.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 1



Product Details



5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 25.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 35.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 4





TFT Applications



The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen 5
