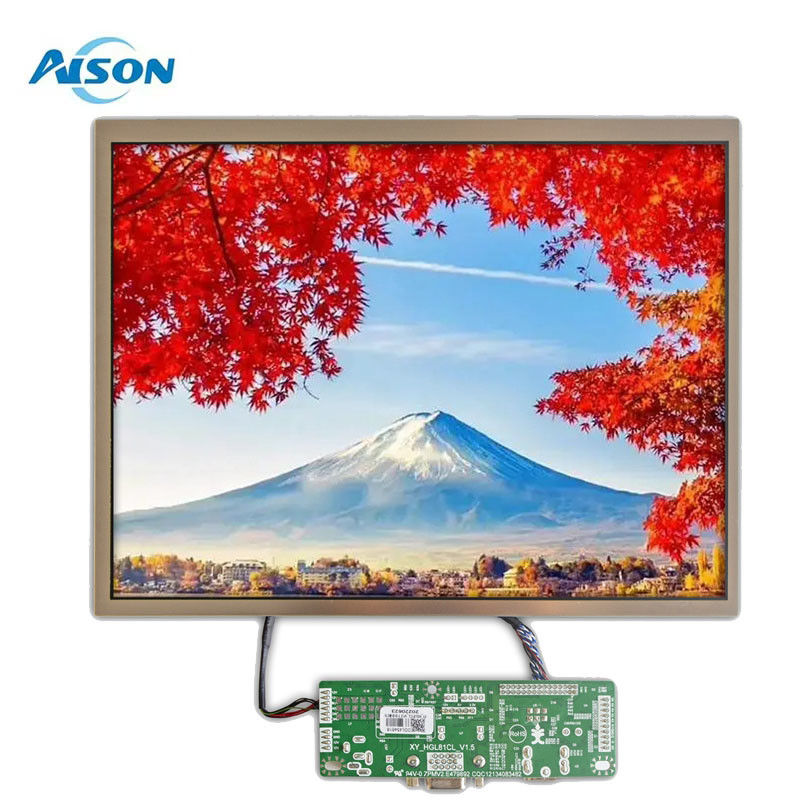

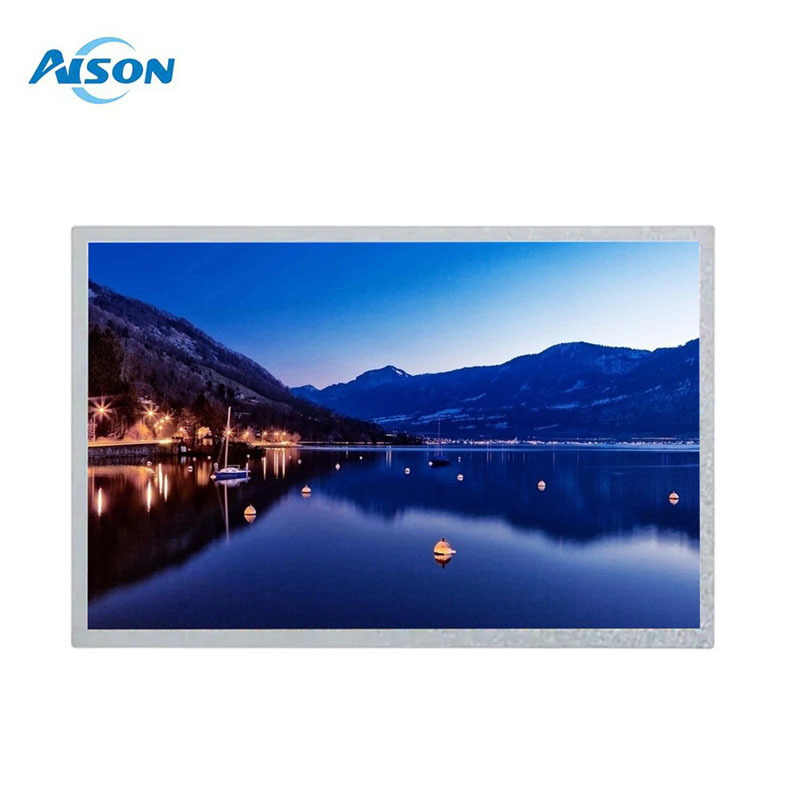

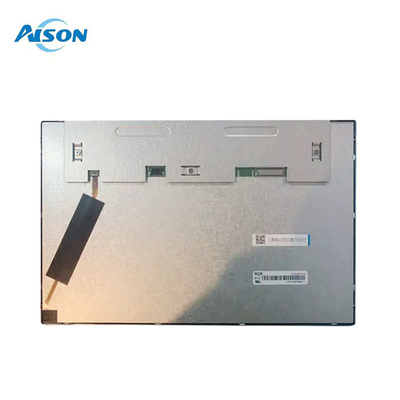

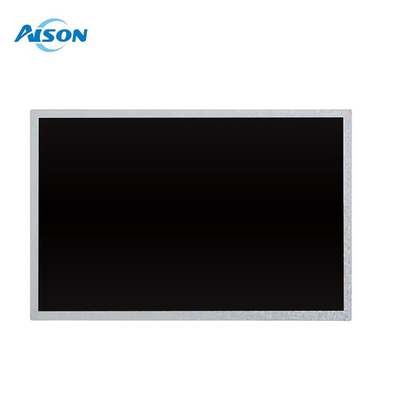

Sunlight Readable 1000cd/m2 12.1 inch 1280X800 LVDS IPS TFT Display

Sunlight Readable 1000cd/m2 12.1 inch 1280X800 LVDS IPS TFT Display

Display General Description

• High-Resolution Display: The 12.1 inch TFT LCD Display features a high-resolution 1280X800 display, providing clear and crisp visuals for a variety of applications, including industrial, medical, and smart home use.
•  LVDS Interface : The display offers LVDS interface , providing flexibility for easy integration with various systems and devices, including industrial and medical equipment.
• This 12.1 inch LCD Module is operating at temperatures from -20℃ to +80℃ and storage temperatures from -30℃ to +80℃.This 12.1 inch IPS lcd module is built to withstand diverse environmental conditions.
• This 12.1 inch tft display is adopted IPS panel which is having the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 1200:1 (typical value), brightness 650 nits (minimum value), anti-glare surface panel, aspect ratio 16:9.
• Long-Lasting Performance: Backed by a 12-month warranty, this touch screen module is built to last, with a brightness of 1000 cd/m2, ensuring reliable performance over an extended period.

General Data



Drawing



Product Details


TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
