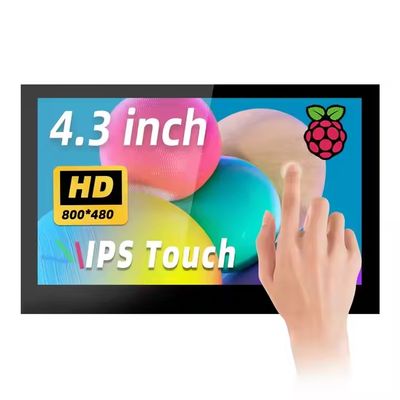

4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface

4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface
4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface 4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface

Large Image :  4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: DSI430-V1.0I
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable based on quantity
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days for samples;3-4 weeks for mass production
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface

Description
Item: 4.3 Inch DSI Display Resolution: 800x480
Outline Dimension: 105.5x67.2x11.4mm Active Area: 154.08x85.92mm
Interface: DSI&USB Brightness: 450cd/m2
Display Mode: IPS,Normally Black Operating Temperatures: -20 To 70 Degree
Storage Temperatures: -30 To 80 Degree
Highlight:

4.3 inch IPS LCD display for Raspberry Pi

,

capacitive touch screen with MIPI DSI

,

HDMI TFT display with IPS panel

4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface



General Description



DSI430-V1.0I is a 4.3 inch LCD display driver board; Supports DSI input; Support capacitive touch panel.


4.3inch IPS 800x480 MIPI DSI LCD Module for Raspberry PI 3B/ 3B+ / 4B



1. Connect to Raspberry PI MIPI DSI directly, no need other program.
2. IPS screen give you better viewing angle, perfect picture and display effect.
3. Capacitive touch panel allow you to touch with your fingers. 5 points multi touch. It's convenient for you to operate it.
4. Same size of LCD and PCB Board, Raspberry Pi positioning column M2.5 is reserved at the bottom5. The display don't need an external power supply , the MIPI-DSI connection to Raspberry Pi is enough.
6. The refresh frequency is around 60 Hz.
7. Could customize PCB and Cover glass .


General Spec



Model Name 4.3 inch DSI TFT Touch Display
Resolution 800x480
Model Size (W*H*T)mm 105.5x67.2x11.4mm
Display Area (W*H)mm 92.8x53.86mm
Interface MIPI DSI
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 400 cd/m2
Pin 15
Touch Captouch
Application For Raspberry Pi
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree







Drawing



4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface 0

Product Details



4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface 1



TFT Applications



Product introduction
IPS full viewing angle display○800X480 resolution, up to 178° full viewing angle panel

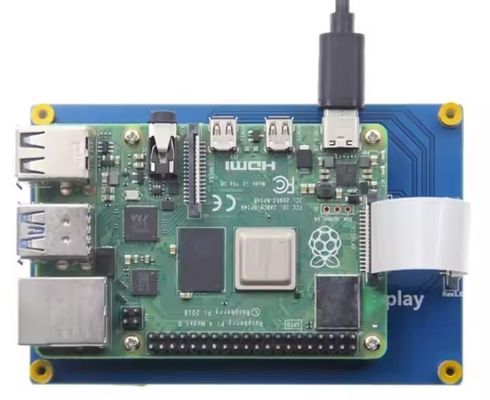

Use as a Raspberry Pi display
○Support Raspberry Pi back-to-back direct installation and locking
○Support mainstream development boards such as Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black, etc.
○When used with Raspberry Pi, it supports mainstream systems such as Raspbian, Kali linux, ubuntu, etc., supports touch control,
plug-and-play driver-free.
Use as a mini PC monitor
○It can be used as a computer secondary screen display (Windows supports 5-point touch), and can be used with other Mini PC
monitors to display
