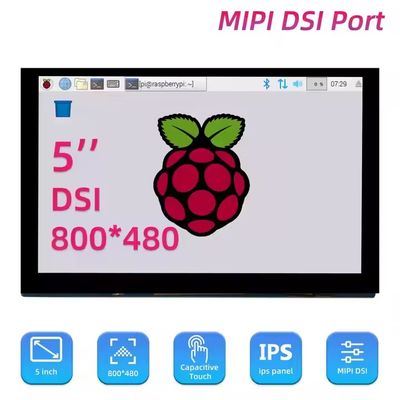

5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B

5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B
5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B

Large Image :  5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: DSI500-V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable based on quantity
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days for samples;3-4 weeks for mass production
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B

Description
Product Name: 5 Inch DSI Touch Display Resolution: 800x480
Outline Dimension: 164.9*122.96*13.2mm Active Area: 154.08x85.92mm
Interface Type: MIPI DSI Luminance: 400cd/m2
Display Mode: Normally Black Working Temperatures: -20 To 70 Degree
Storage Temperatures: -30 To 80 Degree
Highlight:

5 inch LCD Touch Screen Display

,

800x480 LCD Touch Screen Display

5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B



General Description



DSI500-V1.0I is a 5 inch LCD display driver board; Supports DSI input; Support capacitive touch panel.

5inch IPS 800x480 MIPI DSI LCD Module for Raspberry PI 2B/3B/ 3B+ / 4B/ CM4/ 5
1. Connect to Raspberry PI MIPI DSI directly, no need other program.
2. IPS screen give you better viewing angle, very good picture and display effect.
3. Capacitive touch panel allow you to touch with your fingers. 5 points multi touch .
It's convenient for you to operate it.
4. Same size of LCD and PCB Board, Raspberry Pi positioning column M2.5 is reserved at the bottom
5. The display don't need an external power supply , the MIPI-DSI connection to Raspberry Pi is enough.
6. The refresh frequency is around 60 Hz.
7. Could customize PCB and Cover glass .




General Spec

Model Name 5 inch DSI LCD Display
Resolution 800x480
Model Size (W*H*T)mm 120.7x98x12.4mm
Display Area (W*H)mm 108x64.8mm
Interface MIPI DSI
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 400 cd/m2
Pin 40
Touch Captouch
Application For Raspberry Pi
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree







Product Details



5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 0

TFT Applications

This 5 inch IPS 800x480 MIPI DSI LCD Module can use for Raspberry PI 2B/3B/ 3B+ / 4B/ CM4/ 5.


5 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 15 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 25 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 35 inch 800x480 MIPI DSI LCD Touch Screen Display For Raspberry Pi 3 4B 4
