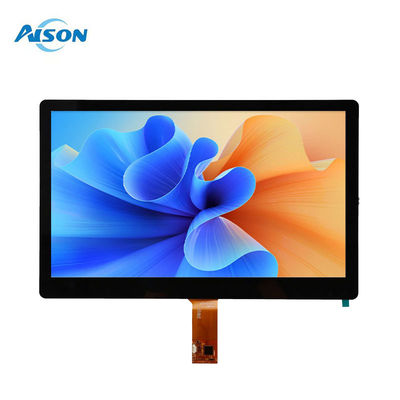

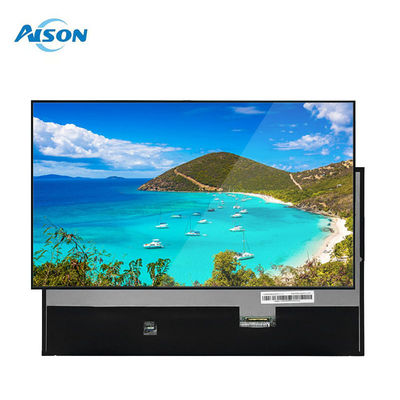

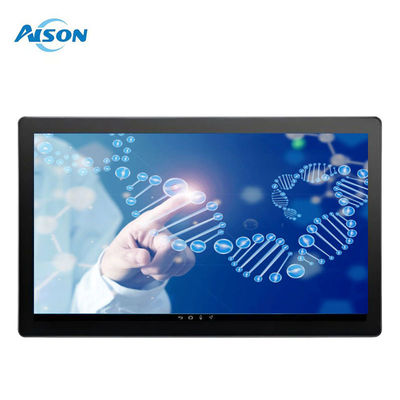

15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications

15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications
15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications
15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications

Large Image :  15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z156FH03-CT2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton/Blister
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications

Description
Product Name: 15.6 Inch 1920x1080 LVDS TFT Display Resolution: 1920x1080
Module Size: 372.16*221.59*8.2mm Active Area: 344.16 (H) ×193.59 (V) Mm
LCM Type: LVDS Brightness: 500/1000 Cd/m2
Operating Temperatures: -20 To 70 Degree Storage Temperatures: -30 To 80 Degree
Display Type: Normally Black Touch: PCAP Touch
Touch Interface: USB &I2C
Highlight:

1920x1080 TFT LCD Module display

,

PCAP Touch TFT LCD Module display

,

15.6'' TFT LCD Module display

15.6'' Full HD TFT LCD Module display 1920x1080 LVDS Interface with PCAP Touch screen For Outdoor Applications



General Description


15.6” wide format Active-Matrix LCD module (“TFT LCD”) with Full HD resolution. It combines wide viewing angle 85/85/85/85 with high luminance 1000cd/m2. The 15.6 inch LVDS TFT Display has very good readability even under strong and direct sunlight.

Typical applications:

  • Marine
  • General outdoor usage

Main characteristics are:

  • Diagonal : 15.6”
  • Resolution : Full HD, 1920 x 1080
  • Wide viewing angle (u/d/l/r) : 85°/85°/85°/85°
  • High luminance : 1000 cd/m2
  • With PCAP Touch Panel

Aison is an TFT LCD Screen manufacturer, providing a full range of 0. 85 inch to 15.6 inch small and medium size standard TFT LCD modules, TFT screen modules, TFT display modules, display industry, industrial TFT Display, visually outstanding TFT LCD display in sunlight screen, industrial custom TFT displays, TFT full temperature LCD dispalys, industrial TFT LCD modules, industrial touch screen.Our TFT LCD modules are ideal for industrial control equipment, medical devices, POS systems, consumer electronics, communication equipment, and office supplies.and more.




General Data

Model Name 15.6 inch PCAP LVDS TFT Display
Resolution 1920x1080
Model Size (W*H*T)
372.16*221.59*8.2mm
Display Area (W*H) 344.16 (H) ×193.59 (V) mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing Angles 85/85/85/85
Brightness 1000 cd/m2
Pin number 30 pin
Touch
with Capacitive Touch Panel
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃



Drawing

15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 015.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 1



Product Details

15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 215.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 315.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 4



TFT Applications

From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.



15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications 5
