18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits

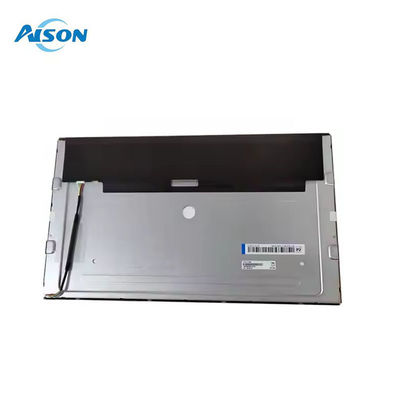

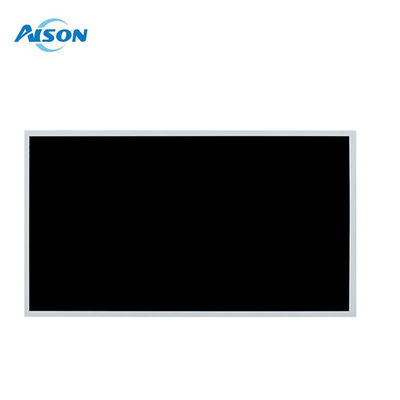

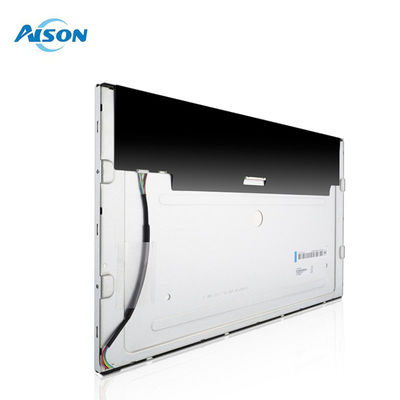

Large Image : 18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z185BMN181-H4801

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits

Description

LCM:	18.5 Inch FHD TFT Display	Number Of Pixels:	1920x1080
Dimensional Outline:	430.37(H)254.6(V)11.2(D)	Active Area:	408.96 (H) × 230.04(V)mm
Interface:	LVDS 30PIN	Viewing Angle:	85/85/85/85
Luminance:	1200cd/m2 Or Custom	Display Mode:	TFT,Normally Black
Viewing Direction:	ALL/IPS	Operating Temperatures:	-30 ~ 80 °C
Storage Temperatures:	-30 ~ 80 °C
Highlight:	Sunlight Readable TFT LCD Display Panel , LVDS Interface TFT LCD Display Panel , 18.5 Inch TFT-LCD Display Panel

18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits

General Description

1.1 Introduction

This is a color 18.5 inch sunlight readable tft lcd display panel with 1920RGBx1080resolutions. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. This tft displayis only 18.5" in diagonal, packed with RGB pixels, for making very small high-density displays.

The sunlight readable 8.5’’ tft lcd panel is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit, it is 1920RGBx1080 dots.

This sunlight readable 18.5 tft lcd screen is with all viewing angel display, and built in with controller IC, it supports LVDS interface, high brightness 1,500 nits, it is suitable for outdoor application.

The 8.5’’ sunlight readable tft display is often used for any embedded systems, industrial device, security and hand-held equipment which requires display in high quality and outdoor application.

1.2 Features

LED back-light

LVDS interface

RoHS Compliant

16.7M color depth

FHD1920X1080

Wide Temperature

General Data

Model Name	18.5 inch TFT Display Module
Resolution	1920(RGB)×1080, FHD
Model Size (WHT)	430.37(H)254.6(V)11.2(D)
Display Area (W*H)	408.96(W)×230.04(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	120 cd/m2
Pin number	30 pin
Contrast Ratio	1200:1
Operating temperatures	-30 ~ 80 °C
Storage temperatures	-30 ~ 80 °C

Drawing

18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits 0

Product Details

18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits 1

TFT Applications:

The 18.5 inch FHD TFT display modules are suitable for many varied applications including industrial process control, factory automation, in-vehicle systems, instrumentation, point-of-sale systems, digital signage, and medical equipment.

18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits 4
