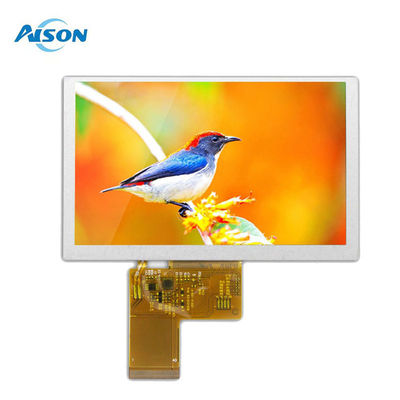

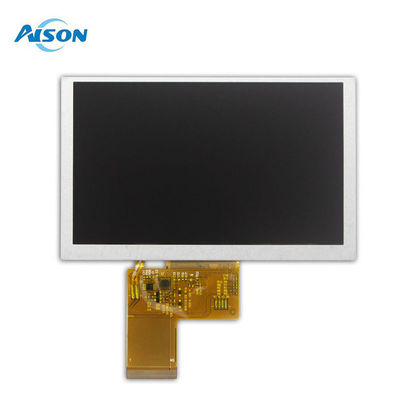

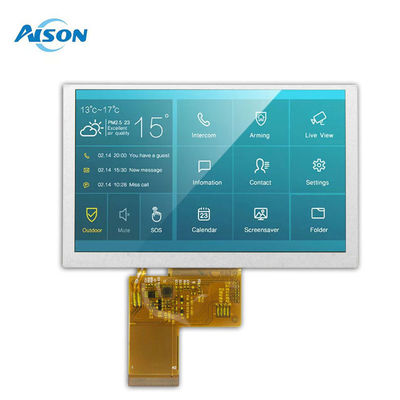

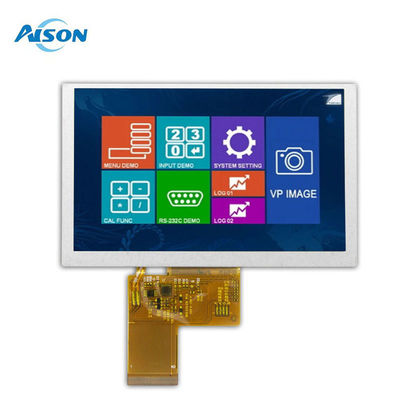

5 inch IPS TFT Display 800x480 LVDS Interface 500cd/m2 for Industrial Application

Large Image : 5 inch IPS TFT Display 800x480 LVDS Interface 500cd/m2 for Industrial Application

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z050WV21

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10~20usd/pc
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

5 inch IPS TFT Display 800x480 LVDS Interface 500cd/m2 for Industrial Application

Description

LCM Name:	5 Inch LVDS TFT Display Module	Number Of Dots:	800x480
Module Size(WHT):	120.775.82.9mm	Active Area:	108 X 64.80 Mm
Interface:	LVDS	Brightness:	500cd/m2
Display Mode:	TFT, Normally Black, Transmissive	Viewing Direction:	ALL/IPS
Operating Temperatures:	-30 To 80 ℃	Storage Temperatures:	-35 To 85 ℃
Backlight:	White LED
Highlight:	800x480 Industrial Application TFT Display , 5 inch Industrial Application TFT Display , 500cd/m2 Industrial Application TFT Display

5 inch IPS TFT Display 800x480 LVDS Interface 500cd/m2 for Industrial Application

Display General Description

Diagonal Dimension : 5.0 inch
Resolution : 800x480 pixel
View Direction : All
Touch Mode : Five points and Gestures
Module Dimension : 120.7*75.8*2.9mm
Viewing Area : 108.00(H)x64.8(V) mm
Supply Voltage : 3.3 V
Interface : 4-Lane LVDS/8BIT LVDS
Luminance : 500 cd/m2
Drive IC : ST7262 GT911
Operation Temperature : -30℃~80℃
Storage Temperature : -35℃~85℃

Z050WV21 is a 5 inch IPS TFT LCD panel display featuring IPS panel technology and a resolution of 800 x 480 pixels. The TFT-LCD module supports a LVDS interface. It boasts a brightness of 500 nits (typical) and a high contrast ratio of 1000:1 (typical). Additionally, it offers a wide operating temperature range from -30°C to +80°C, with a storage temperature range of -35°C to +85°C.

This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). The supply voltage of Z050WV21 model is from 3.1 to 3.6V, aspect ratio 5:3, normally black, transmissive LCD type, Anti-glare surface glass.

General Data

Model Name	5 Inch IPS TFT LCD Display
Resolution	800x480
Model Size (WHT)	120.775.82.9 mm
Display Area (W*H)	108 x 64.80 mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing Angels	85/85/85/85
Brightness	500 cd/m2
Pin number	40
Contrast Ratio	1000:1
BACKLIGHT TYPE	12 WHITE LED
Operating temperatures	-30 to 80 ℃
Storage temperatures	-35 to 85 ℃

Drawing

5 inch IPS TFT Display 800x480 LVDS Interface 500cd/m2 for Industrial Application 0

Product Details

5 inch IPS TFT Display 800x480 LVDS Interface 500cd/m2 for Industrial Application 1

TFT Applications

The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

5 inch IPS TFT Display 800x480 LVDS Interface 500cd/m2 for Industrial Application 3
