Product Details:
|
| Name: | 3.4 Inch Circular Touch Display | Resolution: | 800x800 |
|---|---|---|---|
| Active Area: | 87.6(W) ×87.6 (H) Mm | Interface: | Type C |
| Brightness: | 300cd/m2 | Display Mode: | TFT, Normally Black, Transmissive |
| Power Supply: | Type C | Housing Material: | CNC Aluminum Shell |
| PCB Board: | Android 3566 | Support: | Wifi &Blue Tooth |

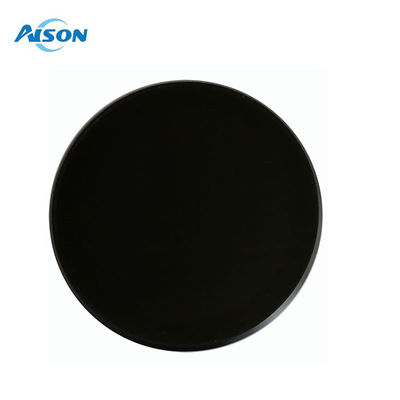

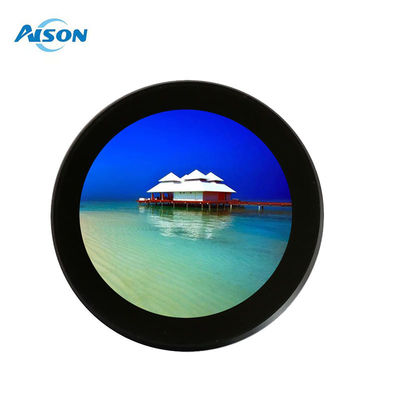

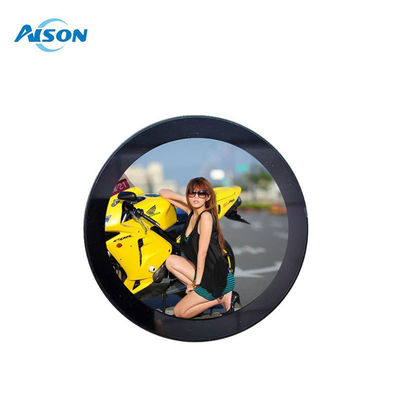

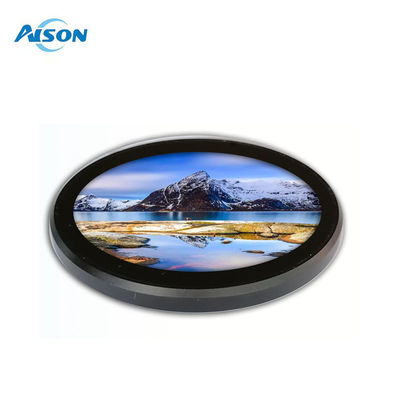

3.4 Inch 800*800 Circular Touch Display With Metal Housing For Advertising Machine
General Description
This is a 3.4-inch Circular TFT Display with PCAP touch screen and metal housing. This module uses an IPS screen, allowing users to see clear imaging at wider viewing angles with the resolution 800x80.
This model has a module dimension of 11.5x18mm with metal housing and an active area of 87.6 x 87.6 mm;it is Type C interface and power supply by Type C. The 3.4 inch round touch displays can operate at temperatures from -20°C to +70°C; its storage temperature covers from -30°C to +80°C.This TFT module is suitable for home appliances, industrial control devices, etc.
General Data
| Product Name | 3.4 inch Circular TFT Display with PCAP |
| Number of Pixel | 800x800 |
| Interface | Type C |
| Luminance(cd/m2) | 300 cd/m2 |
| Active area | 87.6(W) ×87.6 (H) mm |
| LCM | 11.5x18mm |
| PCB Board | Android 3566 |
| Display Mode | Normally Black |
| Viewing Direction | 80/80/80/80 |
| Contrast Ratio | 1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -25 to 75 degree |
The 3.4 inch circular display is suitable for many applications requiring this type of display. The manufacturer suggests its use in household appliances, electronic watches, entertainment machines that use round screens, among others. It can also be used in smart home systems, industrial, medical and automotive devices requiring round displays with good image quality.
In addition to its high-quality optical and electrical performance, the display also features a modern design and easy integration into a variety of end devices, making it suitable for use in innovative consumer electronics projects.
