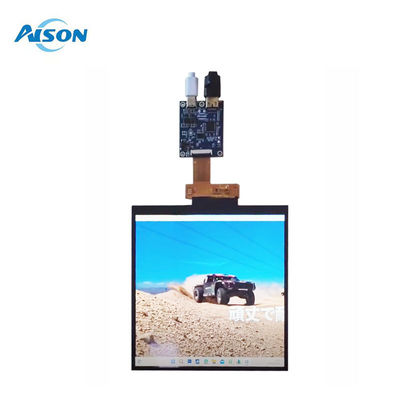

Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board

Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board
Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board
Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board

Large Image :  Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z076-30MB-B1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100k/month
Contact Now

Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board

Description
Name: 7.6 Inch IPS Square TFT Display Resolution: 800x800
Outline Dimension: 142.56 (H)*148.24 (V)*5.1(D) Active Area: 135.36 (H)* 135.36 (V)
Interface: MIPI Viewing Angle: 80/80/80/80
Brightness: 1000cd/m2 Driver IC: ILI9881C
Operating Temperatures: -20℃~ +70℃ Touch: PCAP Available
HDMI Board: Available

Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board



Display General Description

This 7.6 inch square lcd module is equipped with the ILI9881C driver IC and supports MIPI interface.


It has a high 800x800 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's high brightness 1000cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.



General Data



Size
7.6 Inch
Dimensional outline
142.56 (H)*148.24 (V)*5.1(D)
Active area
135.36 (H)* 135.36 (V)
Pixel pitch
36.5(H) x 109.5(V)
Resolution
800*800
Interface
MIPI
Brightness
1000cd/m2
Pixel Arrangement
RGB Vertical Stripe
Driver IC
ILI9881C
Display Color
16.7M
Viewing direction
Free
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 75°C





Drawing



Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board 0Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board 1



Product Details

Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board 2Sunlight Readable 7.6 Inch Square Display 800x800 MIPI TFT LCD Display With HDMI Board 3





TFT Applications



7.6 Inch 800x800 Square TFT Display Application
For industrial & smart home appliances & medical instruments & automotive display.
