Product Details:
|
| Name: | 8 Inch 800x600 IPS TFT Display | Resolution: | 800x600 |
|---|---|---|---|
| Outline Dimension: | 182.9*141*5.5mm | Active Area: | 162*121.5mm |
| Interface: | 24 Bit RGB | Display Mode: | Normally Black, Transmissive |
| Brightness: | 1000cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | Driver IC: | JD9165A-A3 |

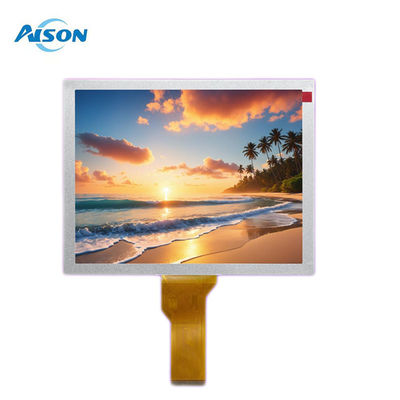

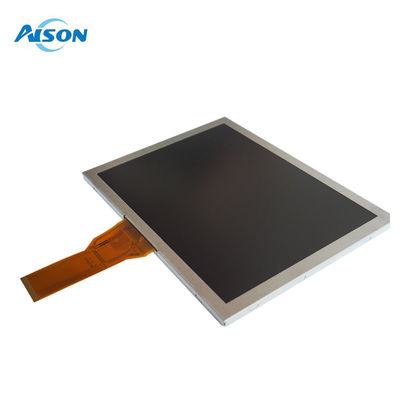

Sunlight Readable 8 inch 800x600 4:3 IPS TFT LCD Display With 50 Pin RGB Interface
General Description
General Data
| Model Name | 8 inch IPS TFT Display |
| Resolution | 800X600 |
| Model Size (W*H*T)mm |
182.9*141*5.5 mm
|
| Display Area (W*H)mm |
183x141x6mm
|
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | ALL |
| Brightness | 1000 cd/m2 |
| Pin number | 50 |
| Viewing Angle | 80/80/80/80 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 8 inch 4:3 TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
