Product Details:
|
| Name: | 3.4 Inch DSI Round Touch Display | Resolution: | 800x800 |
|---|---|---|---|
| Outline Dimension: | 94.9 (H)*96.95 (V)*2.22(D) | Active Area: | 87.6(W) ×87.6 (H) Mm |
| Interface: | HDMI | Viewing Angle: | 85/85/85/85 |
| Brightness: | 300cd/m2 | Display Mode: | TFT, Normally Black, Transmissive |
| Driver IC: | JD9365DA | Operating Temperatures: | -20 To 70 Degree |
| Touch: | Yes |

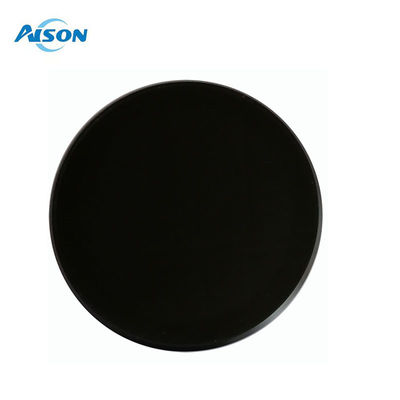

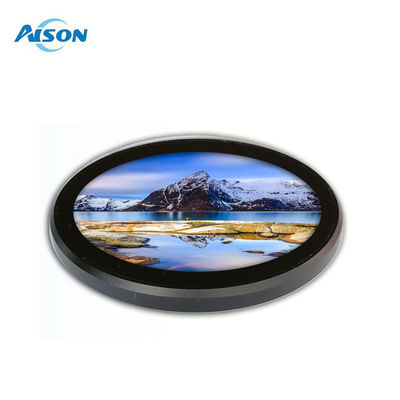

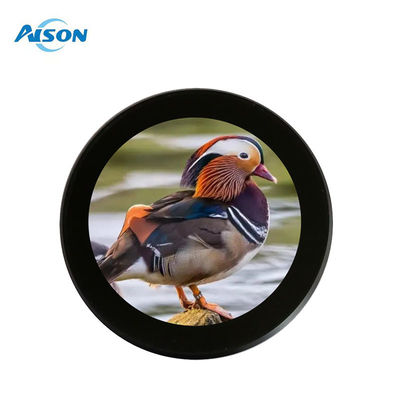

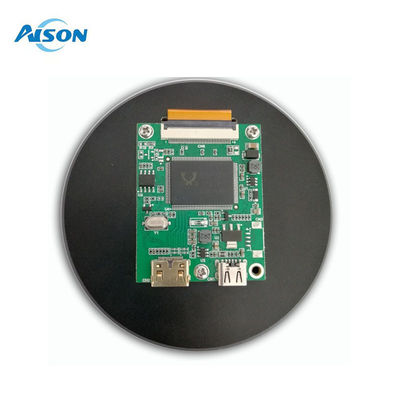

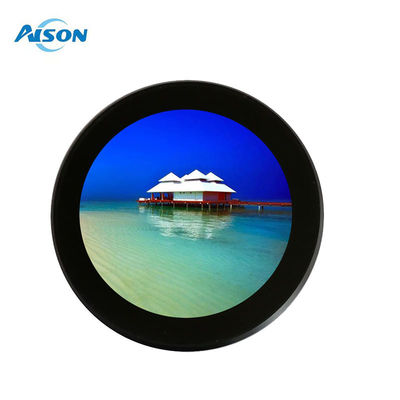

3.4 inch DSI Round Touch Display, 800 × 800, IPS, 10-Point Touch with HDMI Board Enclosure
General Description
Z034-30MB-A1 is a 3.4inch Circular Screen IPS TFT Display with a resolution of 800x800 dots. It uses IPS (In-plane Switching) technology to achieve fast and stable response time, higher frequency transmittance, and better color performance. The most significant advantage of IPS is the wider viewing angles of up: 85/ down: 85/ left: 85/ right: 85 degrees. This circular TFT display has the module dimensions of 94.9 x 96.95 mm and the active area of 87.6 x 87.6 mm. It boasts a built-in JD6365DA driver IC, supporting MIPI interfaces. The contrast ratio of the module is 1200:1, the brightness is 300cd/m2 (typical value).
The operating temperature range of this 3.4" LCD is from -20℃ to +70℃, and the storage temperature range covers from -25℃ to +75℃. The circular TFT LCD display is suitable for home appliances, electronic alarm clocks, cocktail machines, and other products requiring circular display screens.
General Data
Drawing
The 3.4 inch circular display is suitable for many applications requiring this type of display. The manufacturer suggests its use in household appliances, electronic watches, entertainment machines that use round screens, among others. It can also be used in smart home systems, industrial, medical and automotive devices requiring round displays with good image quality.
In addition to its high-quality optical and electrical performance, the display also features a modern design and easy integration into a variety of end devices, making it suitable for use in innovative consumer electronics projects.
