Product Details:
|
| Name: | 4.3 Inch IPS Display Module | Resolution: | 480x272 |
|---|---|---|---|
| Outline Dimension: | 105.60*67.40*2.90mm | Active Area: | 95.04 X 53.86mm |
| Interface: | 24 Bit RGB | Brightness: | 350 Cd/m2 Or Custom |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Driver IC: | SC7283 | Touch: | CTP Or RTP |
| Highlight: | SC7283 TFT Display Module,24 Bit TFT Display Module,4.3 Inch TFT Display Module |
||

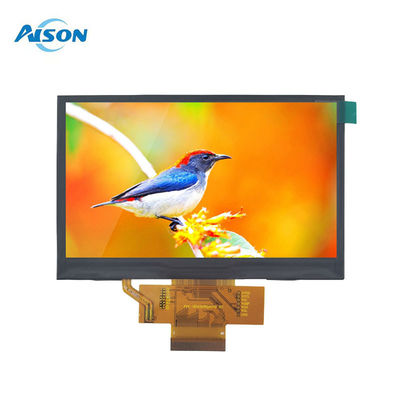

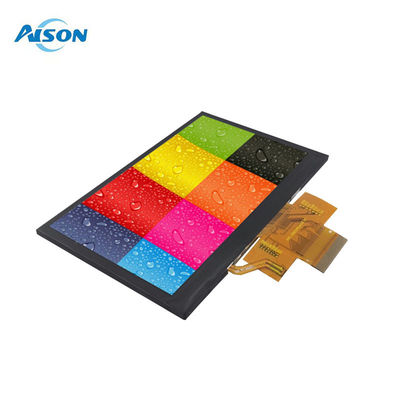

4.3 Inch 480x272 IPS TFT Display Module RGB 24 Bit Driver IC SC7283
AISON Technology offers tailored solutions, allowing customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, AISON can provide customized demo kits, further assisting in the evaluation and decision-making process.
The 4.3-inch IPS TFT LCD Display, a versatile solution tailored for a variety of applications including industrial instruments, industrial control equipment, medical devices, handheld devices, and embedded systems. With its impressive resolution of 480x272 pixels, this TFT LCD ensures crisp and vibrant visuals, providing exceptional clarity for your projects.
Integrated with the advanced SC7283 driver IC, this 4.3 inch lcd module supports a 24-bit RGB interface, ensuring seamless integration and optimal performance across various systems. Its anti-glare surface panel with a all view direction, combined with a 16:9 aspect ratio, offers an optimal viewing experience, enhancing visibility and reducing glare in various lighting conditions.

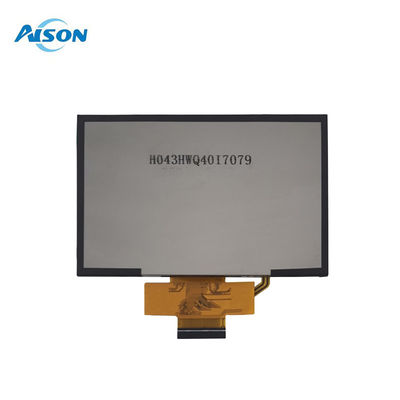

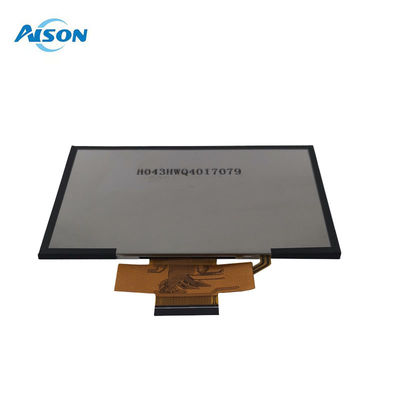

This 4.3 inch display module uses an IPS screen, which allows users to see the display clearly at wide angles. The Z043HWQ40I7079 module can operate at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.
Additionally, optional models with resistive touch functionality or projected capacitive touch functionality are available to cater to different user preferences and project requirements.
General Data
| Product Name | 4.3 inch IPS LCD Display |
| Number of Pixel | 480x272 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 350cd/m2 |
| Active area |
95.04 x 53.856 mm
|
| LCM (W x H x D) |
105.60*67.40*2.90mm
|
| Viewing Direction(eye) | ALL/IPS |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The 4.3-inch IPS TFT LCD Display, a versatile solution tailored for a variety of applications including industrial instruments, industrial control equipment, medical devices, handheld devices, and embedded systems. With its impressive resolution of 480x272 pixels, this TFT LCD ensures crisp and vibrant visuals, providing exceptional clarity for your projects.
