Product Details:
|
| Name: | 10.4 Inch Industrial LCD Display | Resolution: | 1024x768 |
|---|---|---|---|
| Module Size: | 238.6*175.8*6.5mm | Active Area: | 210.43x 157.82mm |
| Interface Type: | LVDS | Luminance: | 600cd/m2 |
| Display Mode: | TFT, Normally Black, Transmissive | Operating Temp: | -30 To 80 Degree |
| Storage Temp: | -30 To 80 Degree | ||
| Highlight: | 10.4” Industrial LCD Display Module,LVDS Interface Industrial LCD Display Module,Wide Temperature Industrial LCD Display Module |
||

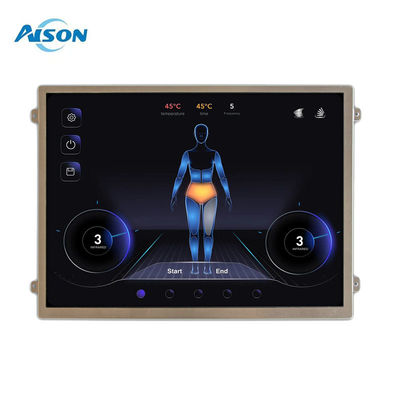

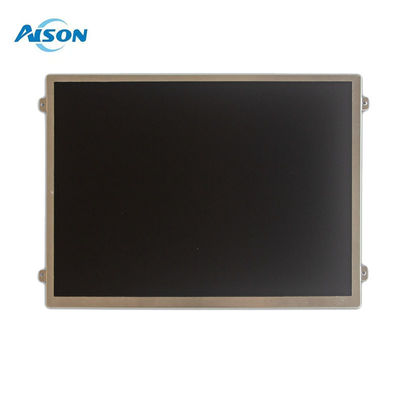

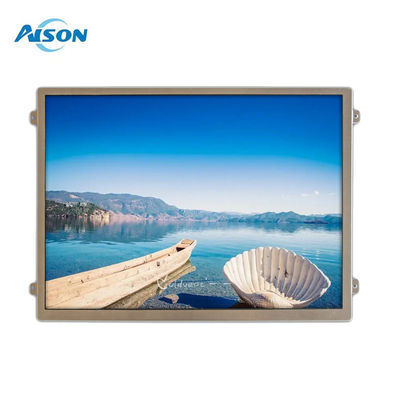

10.4 inch Wide Temperature 1024X768 Industrial LCD Display Module with LVDS Interface 30Pin
The Z104WX01 is a high-performance 10.4-inch TFT-LCD display designed with exceptional features to meet various application needs. With a resolution of 1024x768 pixels, this display delivers crisp and detailed images for a superior viewing experience.
Featuring high brightness and a wide operating temperature range, the Z104WX01T is suitable for demanding environments. It boasts a brightness of 600 nits (typical value) and a contrast ratio of 1000:1 (typical value), ensuring excellent visibility in various lighting conditions.
Equipped with an LVDS interface, the Z104WX01 supports high-speed data transmission, making it ideal for applications requiring fast and reliable connectivity. The LVDS interface offers advantages such as low power consumption, noise compatibility, and reliable signal transmission.
The Z104WX01 utilizes IPS technology to enhance performance further. With faster response times, higher frequency transmittance, and better color definition, it provides wider viewing angles of Left: 85 / Right: 85 / Up: 85 / Down: 85 degrees (typical value), ensuring clear visibility from different perspectives.

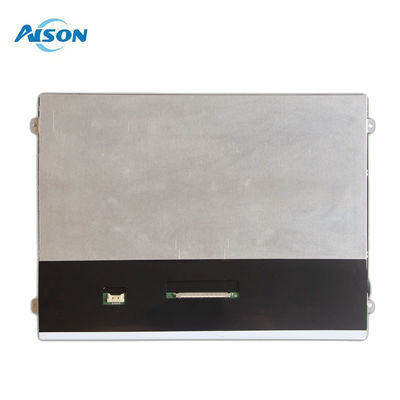

Measuring 238.6 x 175.8 mm with an active area of 210.43 x 157.82 mm, this display features an aspect ratio of 4:3, making it suitable for a wide range of applications. The module includes keyholes on the back for easy installation.
Operating within a voltage range of 3.0V to 3.6V, with a typical value of 3.3V, the Z104WX01 is designed to withstand harsh conditions, making it ideal for various industrial applications. It can operate in temperatures ranging from -30°C to +80°C, ensuring reliable performance in challenging environments.
General Data
| Model Name | 10.4 inch Industrial TFT Display |
| Resolution | 1024X768 |
| Model Size (W*H*T)mm | 238.6*175.8*6.5mm |
| Display Area (W*H)mm | 210.43x 157.82mm |
| Interface | LVDS |
| Display Mode | Normally White TN,Transmissive |
| Viewing Angle | 85/85/85/85 |
| Brightness | 600 cd/m2 |
| Pin number | 30 pin |
|
Contrast Ratio
|
1000:1 |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 10.4 inch TFT LCD module is perfect for measuring equipment, industrial control devices, test instruments, automatic payment machines, and POS systems. Its versatility extends to other demanding applications where durability and precision are paramount.
