Product Details:
|
| Name: | 10.4 Inch Industrial TFT Display | Resolution: | 1024x768 |
|---|---|---|---|
| Outline Dimension: | 258.2*207.2*11.58mm | Active Area: | 210.43x 157.82mm |
| Interface: | LVDS | Luminance: | 500cd/m2 |
| LCD Type: | TFT, Normally Black, Transmissive | Contrast Ratio: | 1000:1 |
| Operating Temperatures: | -30 To 80 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 10.4 inch Industrial TFT Display,Capacitive Touch Industrial TFT Display |
||

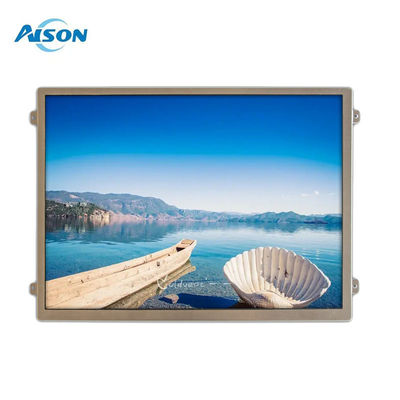

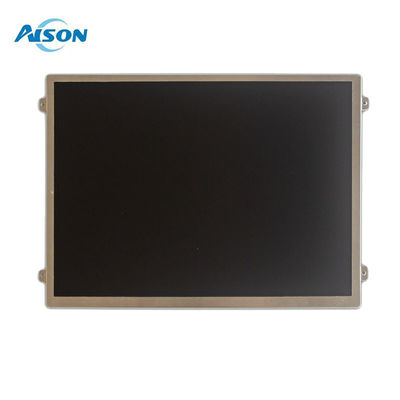

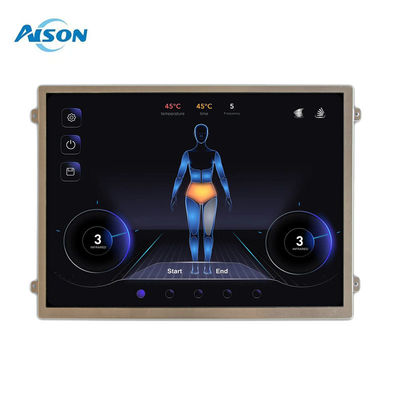

10.4 inch 1024*768 500cd/m2 30Pin LVDS Industrial TFT Display with Capacitive touch
The Z104WX01-CT is a cutting-edge 10.4-inch TFT-LCD display engineered with exceptional features to meet the demands of diverse applications. Equipped with a resolution of 1024x768 pixels, this display delivers superior image quality with crisp details and vibrant colors, ensuring an enhanced viewing experience.
Boasting high brightness and a wide operating temperature range, the Z104WX01-CT is built to excel in challenging environments. With a typical brightness of 500 nits and a contrast ratio of 1000:1, it offers outstanding visibility across varying lighting conditions, making it ideal for both indoor and outdoor use.
This display is powered by an LVDS interface, enabling high-speed data transmission for seamless connectivity. The LVDS interface provides low power consumption, noise immunity, and reliable signal transmission, making it perfect for applications requiring fast and dependable performance.
Incorporating IPS technology, the Z104WX01-CT further enhances its performance with faster response times, improved frequency transmittance, and superior color accuracy. It offers wide viewing angles of 85 degrees in all directions, ensuring clear and consistent visuals from multiple perspectives.
Measuring 258.2 x 207.2 mm with an active area of 210.43 x 157.82 mm, this display features a 4:3 aspect ratio, making it versatile for a variety of applications. The module includes keyholes on the back for user-friendly installation.
Designed to operate within a voltage range of 3.0V to 3.6V (typical 3.3V), the Z104WX01-CT is built to withstand harsh conditions. With a temperature range of -30°C to +80°C, it delivers exceptional reliability in demanding industrial environments.
General Data
| Model Name | 10.4 inch Industrial TFT Display |
| Resolution | 1024X768 |
| Model Size (W*H*T)mm | 258.2*207.2*11.58mm |
| Display Area (W*H)mm | 210.43x 157.82mm |
| Interface | LVDS |
| Display Mode | Normally White TN,Transmissive |
| Viewing Angle | 85/85/85/85 |
| Brightness | 500 cd/m2 |
| Pin number | 30 pin |
| Interface | RGB 24 bit |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 10.4 inch TFT LCD module is perfect for measuring equipment, industrial control devices, test instruments, automatic payment machines, and POS systems. Its versatility extends to other demanding applications where durability and precision are paramount.
