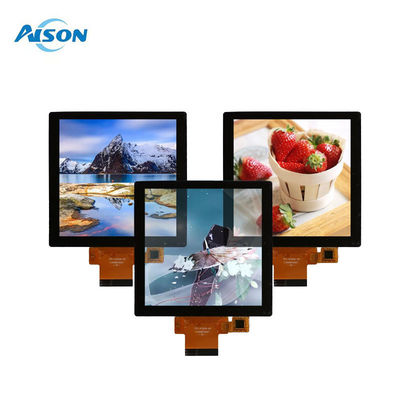

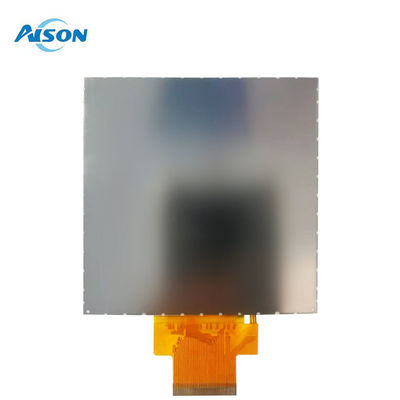

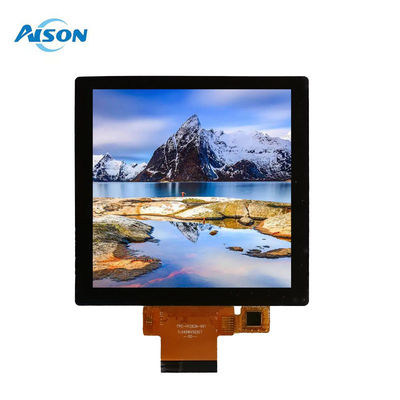

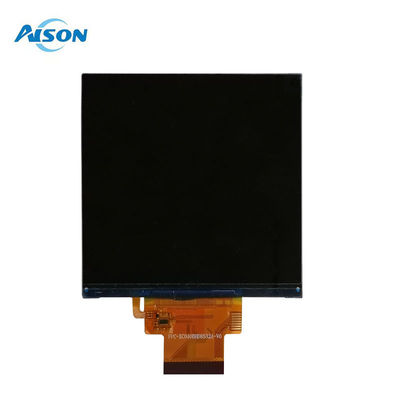

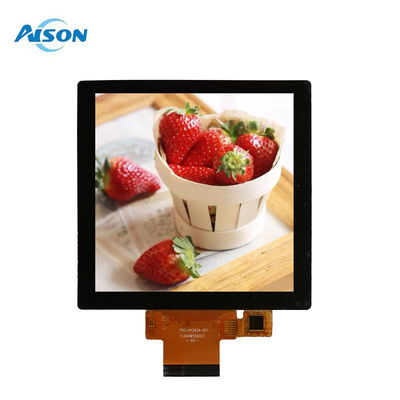

4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box

4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box
4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box
4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box

Large Image :  4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z040-40RH-A1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100k/month
Contact Now

4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box

Description
Item: 4 Inch Square TFT Display Resolution: 480x480
Module Size: 84*84*3.05 Mm AA Size: 71.86*70.18 Mm
Interface Type: 3SPI+RGB View Direction: ALL
Luminance: 300 Cd/m2 Display Mode: TFT,Normally Black
Touch Driver IC: FT6336U LCD Display Driver IC: ST7701S
Highlight:

300 cd/m2 Square TFT Display

,

4 inch Square TFT Display

,

480x480 Square TFT Display

4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box



Display General Description



This 4-inch square LCD module features the ST7701 driver IC and supports MIPI interface connectivity.



With a 480x480 RGB pixel resolution on a black background, it delivers an exceptional visual experience.



The module offers a brightness of 400 cd/m² with a capacitive touchscreen, ensuring clear visibility in various lighting conditions and providing optimal viewing comfort.



It operates within a temperature range of -20°C to +70°C and can be stored in temperatures from -30°C to +80°C.



General Data

Model Name 4 Inch Square TFT LCD Display
Resolution 480X480
Model Size (W*H*T) 84*84*3.05 mm
Display Area (W*H)mm 71.86 (H) X 70.18 (V)
Interface 3SPI+RGB
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 400 cd/m2
Pin number 40
Drive IC ST7701S
Touch Capacitive Touch Panel
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree









Drawing

4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 04 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 1





Product Details



4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 24 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box 3





TFT Applications



This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 3.95 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
