Product Details:
|
| Name: | 4 Inch Square TFT Display | Resolution: | 720x720 |
|---|---|---|---|
| Outline Dimension: | 74.83x78.98x2.59mm | Active Area: | 71.93 (H)*71.93(V) |
| Interface: | MIPI 4 Lane | Viewing Angle: | 85/85/85/85 |
| Brightness: | 300 Cd/m2 | Display Mode: | Normally Black |
| Driver IC: | FL7707 | Operating Temperatures: | -20℃~ +70℃ |
| Storage Temperatures: | -30℃~ +80℃ | ||
| Highlight: | MIPI interface Square TFT Display,4 inch Square TFT Display,720*720 Square TFT Display |
||

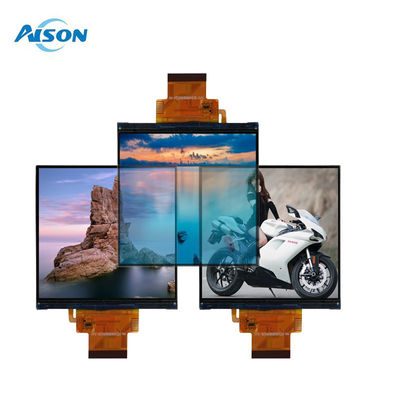

4 inch Square TFT Display 720*720 High Resolution MIPI interface LCD Module

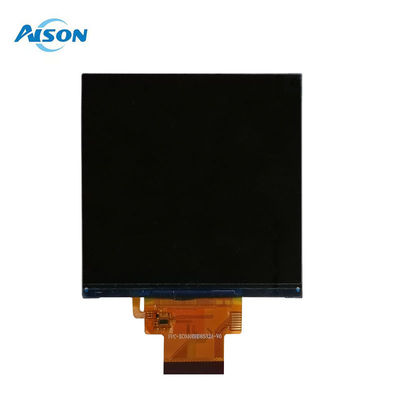

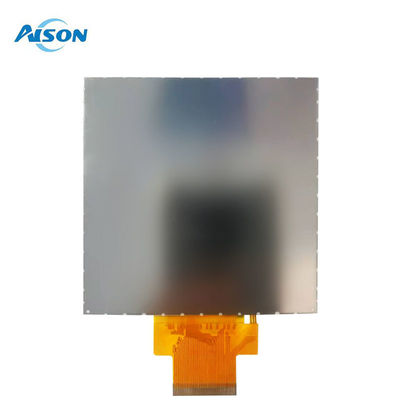

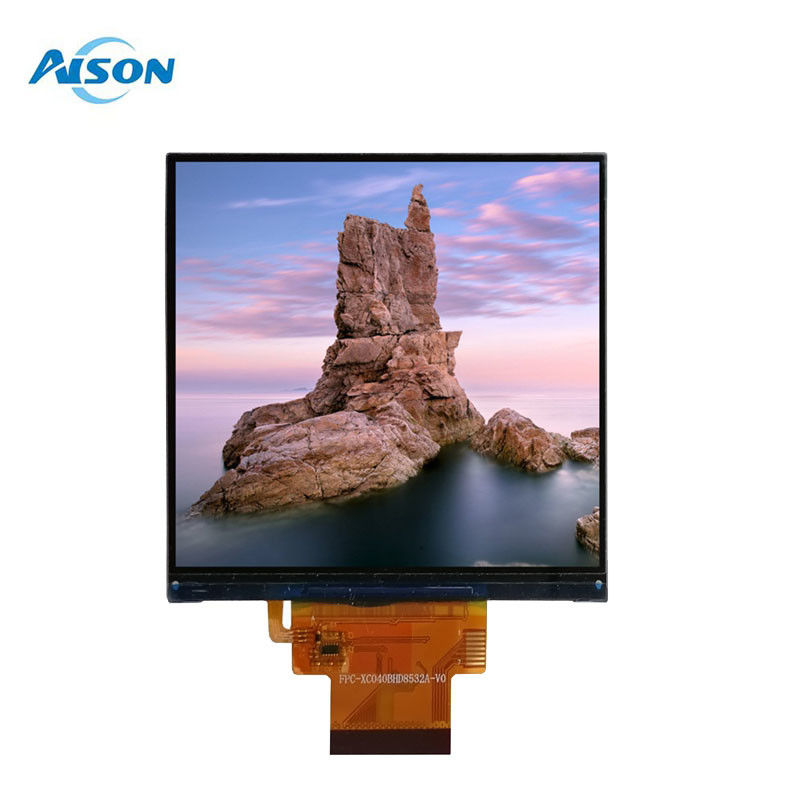

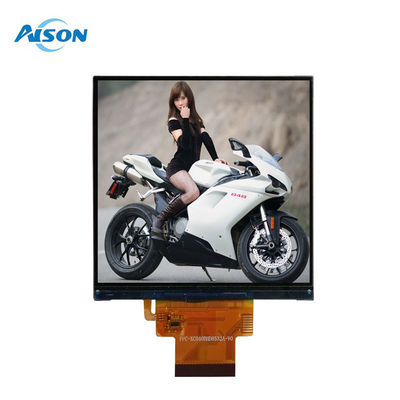

This 3.95 inch (4 inch)square lcd module is equipped with the FL7707 driver IC and supports MIPI interface.
It has a 720x720 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's brightness of 300cd/m2 with captouch screen ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.
General Data
| Model Name | 4 Inch Square TFT LCD Display |
| Resolution | 720x720 |
| Model Size (W*H*T) | 74.83x78.98x2.59mm |
| Display Area (W*H) | 71.93 (H)*71.93(V) |
| Interface | MIPI 4 Lane |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 300 cd/m2 |
| Pin number | 30 |
| Drive IC | FL7707 |
| Touch | Capacitive Touch Panel Optional |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 3.95 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
