Product Details:
|
| Name: | 7.6 Inch Square TFT LCD Display | Resolution: | 1200X1200 |
|---|---|---|---|
| Outline Dimension: | 142.56 (H)*148.24 (V)*5.1(D) | Active Area: | 135.36 (H)* 135.36 (V) |
| Interface: | MIPI | Viewing Angle: | 80/80/80/80 |
| Brightness: | 1000cd/m2 | Display Mode: | Normally Black |
| Driver IC: | ILI9881C | Operating Temperatures: | -20℃~ +70℃ |
| Storage Temperatures: | -30℃~ +80℃ | ||
| Highlight: | MIPI Interface Square TFT Display,1000cd/m2 Square TFT Display,1200x1200 Square TFT Display |
||

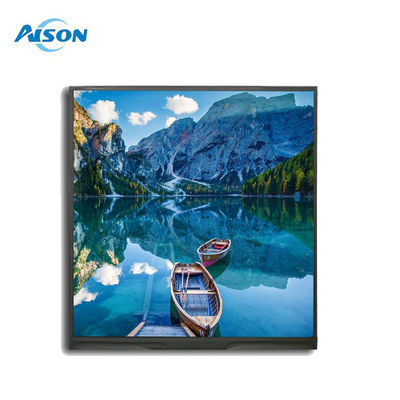

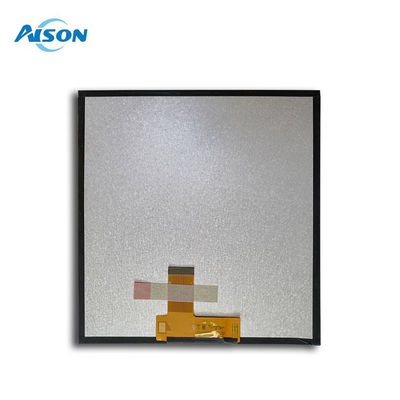

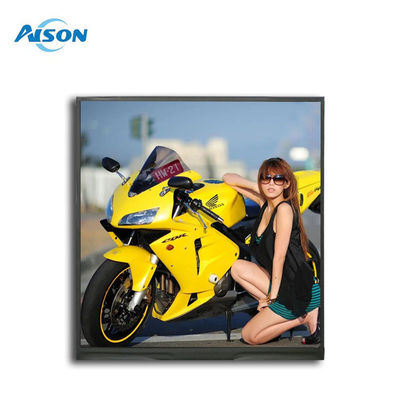

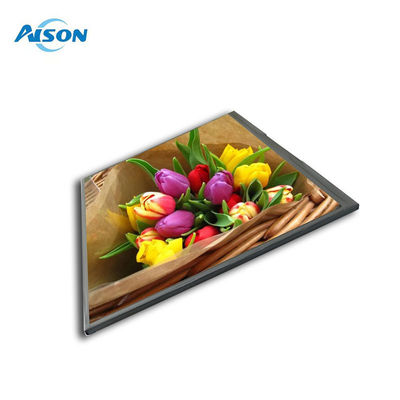

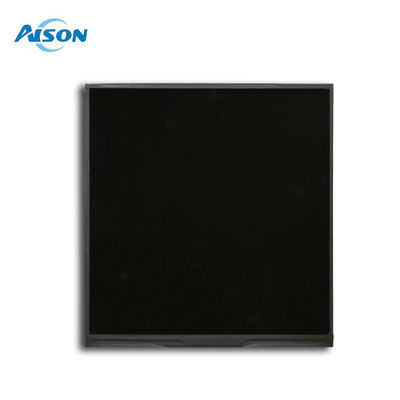

High Brightness 1000cd/m2 7.6 inch Square 1200x1200 TFT LCD Display Module MIPI Interface

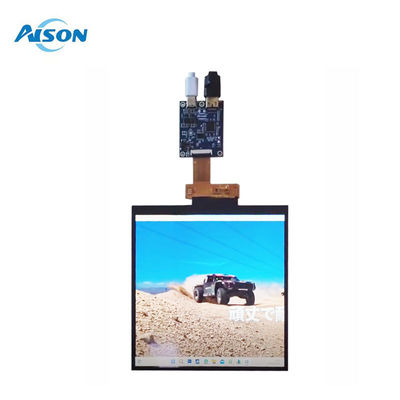

This 7.6 inch square lcd module is equipped with the ILI9881C driver IC and supports MIPI interface.
It has a high 1200x1200 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's high brightness 1000cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.
General Data
|
Item
|
Specifications
|
|||
|
Type
|
Square
|
|||
|
Module Size
|
7.6 Inch
|
|||
|
Dimensional outline
|
142.56 (H)*148.24 (V)*5.1(D)
|
|||
|
Active area
|
135.36 (H)* 135.36 (V)
|
|||
|
Resolution
|
1200*1200
|
|||
|
Interface
|
MIPI
|
|||
|
Brightness
|
1000cd/m2
|
|||
|
Pixel pitch
|
36.5(H) x 109.5(V)
|
|||
|
Pixel Arrangement
|
RGB Vertical Stripe
|
|||
|
Driver IC
|
ILI9881C
|
|||
|
Display Color
|
16.7M
|
|||
|
Viewing direction
|
Normally Black
|
|||
|
Operating Temperature
|
-20°C ~ 70°C
|
|||
|
Storage Temperature
|
-30°C ~ 80°C
|
|||
Drawing
Product Details
TFT Applications
This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 7.6 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
