Product Details:
|
| Name: | 10.1 Inch Resistive Tocuh Display | Resolution: | 1024X600 |
|---|---|---|---|
| Outline Dimension: | 235*143*6.49mm | Active Area: | 222.72 X 125.28mm |
| Interface Type: | RGB Or LVDS | Display Mode: | Normally Black, Transmissive |
| Brightness: | 400 Cd/m2 | Operating Temp: | -20 To 70 Degree |
| Storage Temp: | -30 To 80 Degree | Touch: | With RTP |
| Highlight: | 10.1 inch TFT LCD Display,10.1 inch Resistive Touch Panel,1024x600 TFT LCD Display |
||

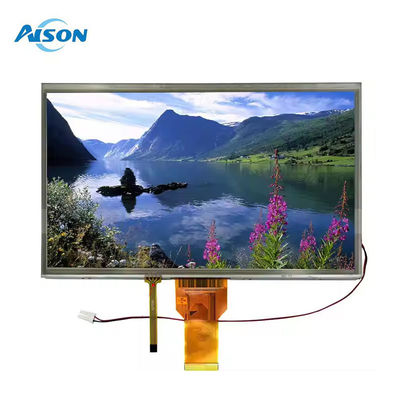

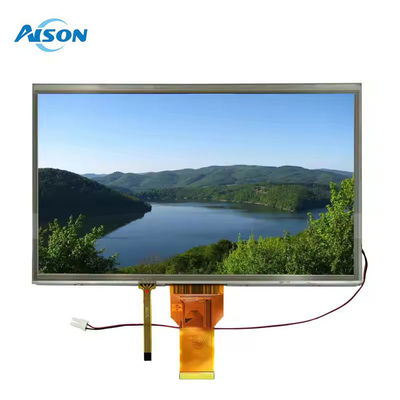

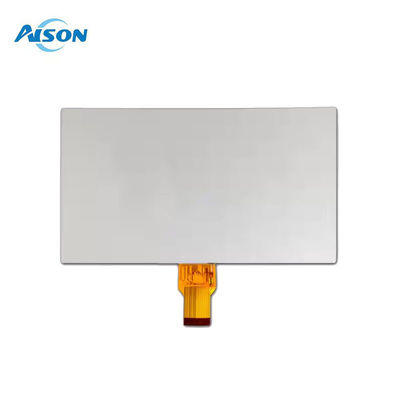

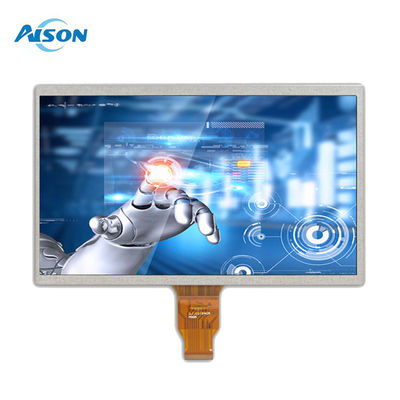

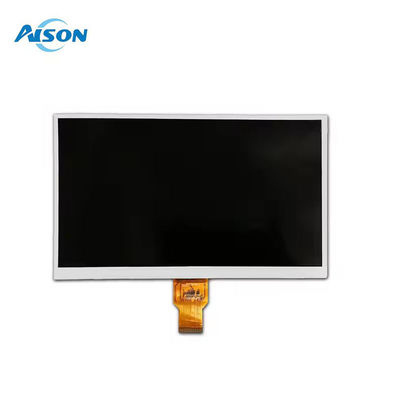

10.1 inch 1024x600 LVDS RTP TFT LCD Display with Resistive Touch Panel
Product Description: Z101WS02-T 10.1" TN TFT LCD Module with Resistive Touch Panel
The Z101WS02-T is a high-performance 10.1-inch TN TFT LCD module featuring a resistive touch panel for enhanced interactivity. Designed in landscape mode, this module boasts a resolution of 1024x600 pixels, delivering crisp and clear visuals.
Equipped with the EK79001HN and EK73215BCGA driver ICs, the Z101WS08 supports an LVDS interface for seamless connectivity. It features a contrast ratio of 800:1 (typical value), a brightness of 400 nits (typical value), and an aspect ratio of 16:9. The module is equipped with an anti-glare surface glass, operates in normally black mode, and is a transmissive LCD type.
The Z101WS08 offers a wide viewing angle of Left:60°, Right:70°, Up:70°, and Down:70° (typical value), ensuring optimal visibility from multiple angles.
The supply voltage (VDD) for the module ranges from 3.0V to 3.6V, with a typical value of 3.3V. It is designed to operate reliably within a temperature range of -20°C to +70°C and can be stored at temperatures from -30°C to +80°C, making it suitable for diverse environmental conditions.
This 10.1-inch TFT LCD module is built to deliver exceptional durability and performance, making it ideal for industrial control systems, medical devices, and other demanding applications.
General Data
| Product Name | 10.1 inch RTP TFT LCD Display |
| Resolution | 1024x600 |
| Model Size (W*H*T) |
235*143*6.49mm
|
| Display Area (W*H) |
222.72 x 125.28 mm
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | 12 o'clock |
| Brightness | 400 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 60/70/70/70 |
| BACKLIGHT TYPE | 36 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
