Product Details:
|
| Name: | 3.5 Inch Portrait LCD Module | Resolution: | 320x480 |
|---|---|---|---|
| Outline Dimension: | 54.86*83.43*4.1mm | Active Area: | 48.96 X 73.44mm |
| Interface: | MIPI | Brightness: | 200 Cd/m2 |
| Display Mode: | TFT,Normally White | Operating Temperatures: | -20 To 70 Degree |
| Storage: | -30 To 80 Degree | ||
| Highlight: | 320x480 TFT LCD Module,3.5 Inch TFT LCD Module,MIPI Interface TFT LCD Module |
||

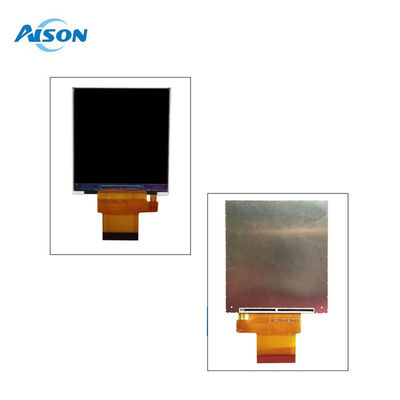

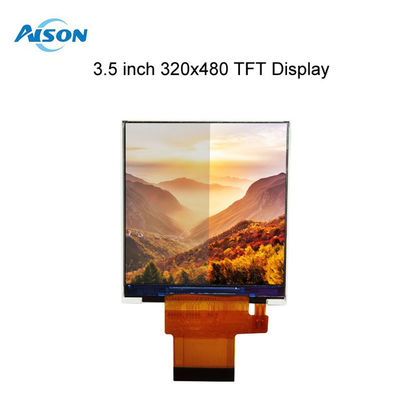

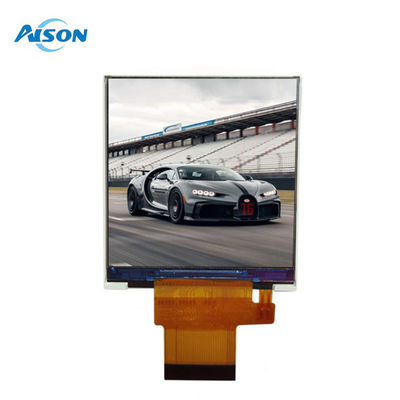

3.5 Inch 320x480 Portrait TFT LCD Module MIPI Interface with Capacitive Touch
General Data
| Product Name | 3.5 inch TFT LCD Module |
| Number of Pixel | 320x480 |
| Interface | MIPI |
| Luminance(cd/m2) | 200 cd/m2 |
| Active area | 54.86*83.43*4.1mm |
| LCM (W x H x D) | 54.5*83*2.45 mm |
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
Overall, Z035HV14 is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.
