Product Details:
|
| Name: | 8 Inch 800x480 TFT Display | Number Of Dots: | 800x480 |
|---|---|---|---|
| Active Area: | 176.64 X 99.36mm | Interface: | 24 Bit RGB |
| Viewing Angle: | 70/70/50/70 | Luminance: | 350cd/m2 |
| Viewing Direction: | 12 O'clock | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | High Brightness TFT LCD Display,Industrial Application TFT LCD Display,8 inch TFT LCD Display |
||

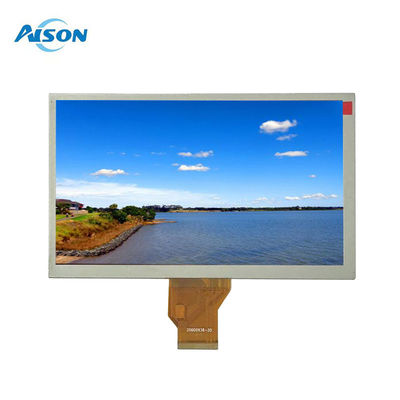

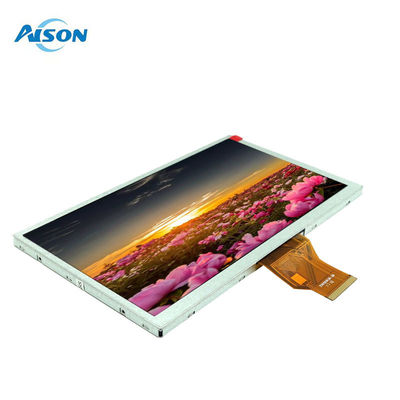

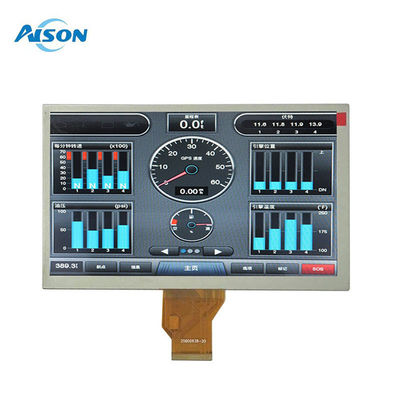

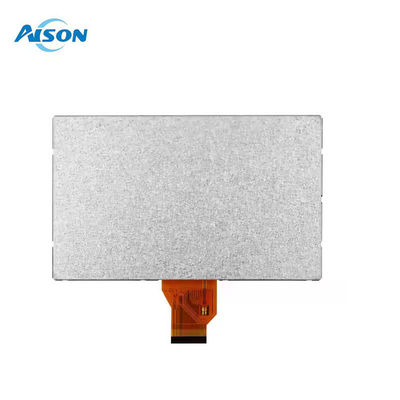

8 inch 800x480 TFT LCD Display High Brightness 1000cd/m2 for Industrial Application RGB Interfacde
Display General Description
The Z080TN64 is a premium 8-inch TFT LCD display module designed for exceptional visual performance. With a resolution of 800x480 pixels and a 16:9 aspect ratio, it delivers sharp and vibrant images. The display features a high brightness of 1000 nits (typical) and a contrast ratio of 500:1, ensuring clear visibility in various environments.
Measuring 192.80 x 116.90 mm in outline dimensions, the module offers an active display area of 176.64 x 99.36 mm, providing ample space for content. Equipped with EK9713 and EK73002 driver ICs, it supports a 24-bit RGB interface for seamless integration.
Operable within a wide temperature range of -20°C to +70°C and a supply voltage of 3.0V to 3.6V (typical 3.3V), the Z080TN64 is built for reliability and durability. Its robust design makes it an ideal solution for industrial control systems, medical devices, and other demanding applications.
General Data
| Model Name | 8 inch TFT LCD Display |
| Resolution | 800X480 |
| Model Size (W*H*T)mm | 192.8*116.9*6.4mm |
| Display Area (W*H)mm |
176.64 x 99.36mm
|
| Interface | 24 bit RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 1000 cd/m2 |
| Pin number | 50 |
| Drive IC | EK9713 + EK73002 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
