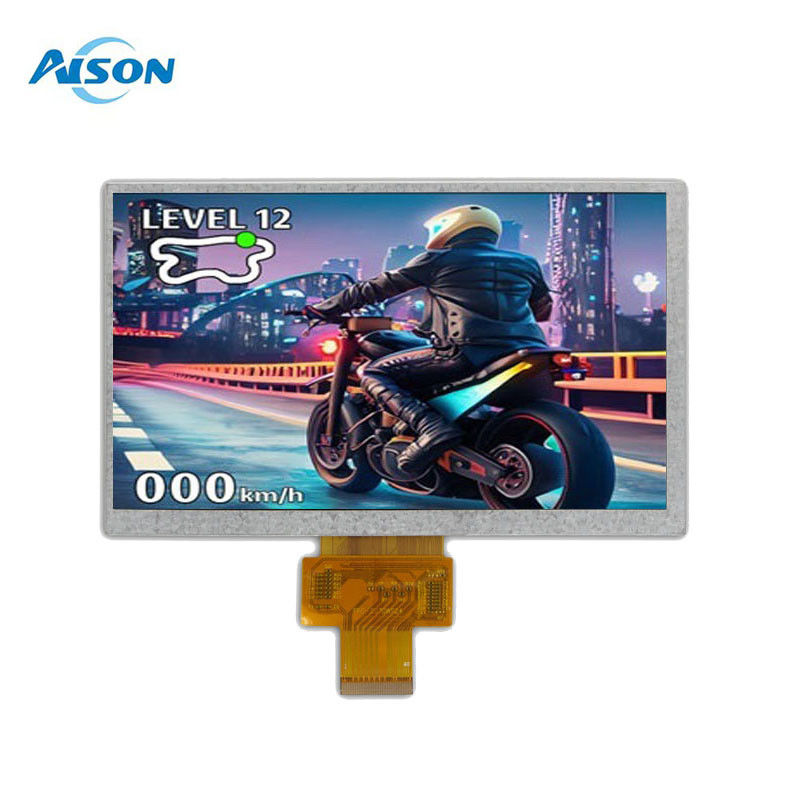

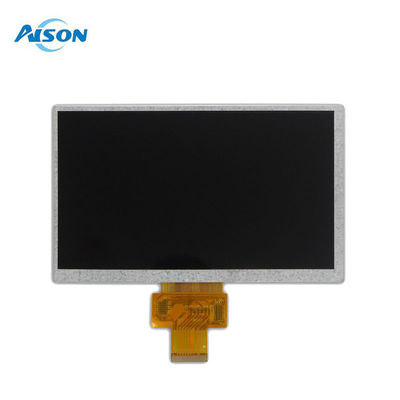

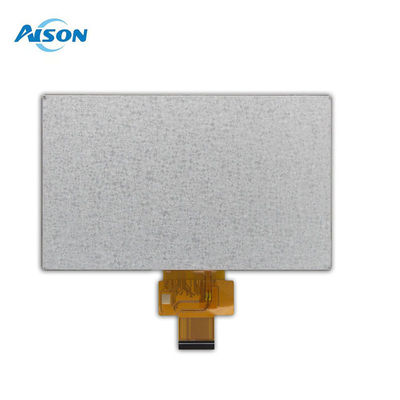

7 inch 800X480 Custom LCD Display Module Industrial Automotive LCD Panel

Large Image : 7 inch 800X480 Custom LCD Display Module Industrial Automotive LCD Panel

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z070WV31

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

7 inch 800X480 Custom LCD Display Module Industrial Automotive LCD Panel

Description

Item:	7 Inch Custom LCD Display Module	Resolution:	800X480
Module Size:	165104.595.8mm	AA Size:	152.4 X 91.44mm
Interface Type:	24 Bit RGB	Viewing Angle:	85/85/85/85
Luminance:	500cd/m2	Display Mode:	TFT,Normally Black
Operating Temperatures:	-30 To 85 Degree	Storage Temperatures:	-40 To 90 Degree
Highlight:	40 Pin Custom LCD Display Module , Custom LCD Display Module Industrial , Automotive LCD Panel 800X480

7 inch 800X480 Industrial TFT LCD Display IPS Automotive Display RGB 24Bit Interface

General Description

The Z070WV31 is a 7.0-inch diagonal a-Si TFT-LCD display panel from Aison, featuring an integrated WLED backlight system with an LED driver and no touchscreen functionality. Key specifications include an operating temperature range of -30°C to 85°C, a storage temperature range of -40°C to 95°C, and a maximum vibration level of 3.0G (29.4 m/s²). General features include wide temperature support, WLED backlighting, a lifespan of ≥50,000 hours, an LED driver, U/D and L/R reverse functionality, 6/8-bit color depth, and a matte finish. This model is highly recommended for applications in industrial and automotive displays.

General Data

Model Name	7 inch Industrial TFT Display
Resolution	800x480
Model Size (WHT)	165.4104.595.8mm
Display Area (W*H)	152.4 x 91.44mm
Interface	24Bit RGB
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	500 cd/m2
Pin number	40 pin
Driver IC	SC7283
Operating temperatures	-30 to 85 ℃
Storage temperatures	-40 to 95 ℃

Drawing
7 inch 800X480 Custom LCD Display Module Industrial Automotive LCD Panel 0

Product Details

7 inch 800X480 Custom LCD Display Module Industrial Automotive LCD Panel 2

TFT Applications

This 7 inch tft display features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C ,Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.

7 inch 800X480 Custom LCD Display Module Industrial Automotive LCD Panel 4
