Product Details:
|
| Name: | 7 Inch Custom LCD Display Module | Resolution: | 800X480 |
|---|---|---|---|
| Outline Dimension: | 165.4*104.59*5.8mm | Active Area: | 152.4 X 91.44mm |
| Interface: | LVDS | Viewing Angle: | 85/85/85/85 |
| Brightness: | 500cd/m2 | Display Mode: | Normally Black |
| Viewing Direction: | IPS/ALL | Operating Temperatures: | -30 To 85 Degree |
| Storage Temperatures: | -40 To 90 Degree | ||
| Highlight: | 500 cd/m2 Industrial TFT LCD,Industrial TFT LCD 40 Pin,LVDS Display Module 7 Inch |
||

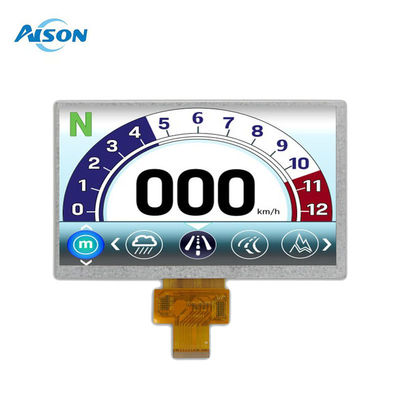

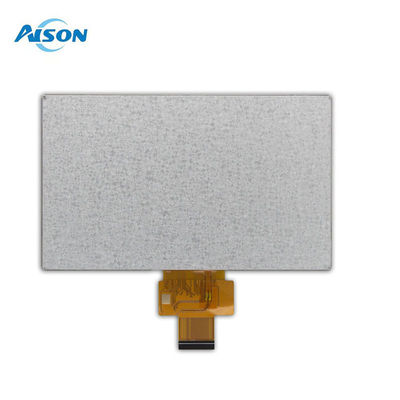

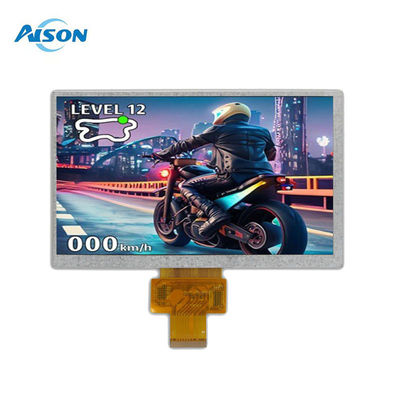

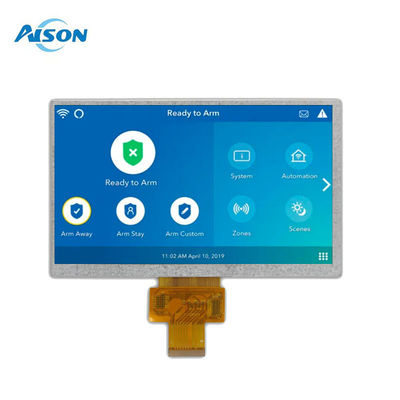

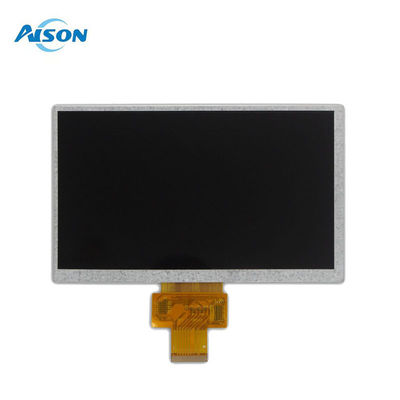

-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2
Z070WV30 is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85/ Down:85 degree, contrast ratio 1000:1 (typical value), high brightness 500 nits, anti-glare surface panel, aspect ratio 16:9. This module is built-in with EK9713B and EK73002A driver ICs, it supports LVDS interface. The LVDS(Low-Voltage-Differential-Signaling)becomes more popular for TFT LCD display. Z070WV30 module was designed to use LVDS interface which is a popular choice for TFT LCDs and peripherals in need of high bandwidth, like high-definition graphics and fast frame rates. It is a great solution because of its high speed of data transmission while using low voltage and improved noise performance. The supply voltage (VDD) of Z070WV30 is from 2.7V to 3.6V, typical value 3.3V. It can be operated at temperatures from -30°C to +85°C and storage temperatures from -40°C to +95°C.
General Data
| Model Name | 7 inch Industrial TFT LCD Module |
| Resolution | 800x480 |
| Model Size (W*H*T) | 165.4*104.59*5.8mm |
| Display Area (W*H) | 152.4 x 91.44mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 500 cd/m2 |
| Pin number | 40 pin |
| Driver IC |
EK9713B+EK73002A
|
| Operating temperatures | -30 to 85 ℃ |
| Storage temperatures | -40 to 95 ℃ |
Drawing
Product Details
TFT Applications
This 7 inch tft display features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C ,Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.
TFT Custom Solutions
