Product Details:
|
| Product Name: | 5 Inch TFT Resistive Touch Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 120.7*76.3*4.4mm | Active Area: | 108 X 64.80 Mm |
| Interface: | RGB | Luminance: | 300 Cd/m2 |
| Display Mode: | TFT,Normally Black | View Direction: | ALL/IPS |
| Operating Temp: | -20 To 70 Degree | Storage Temp: | -30 To 80 Degree |
| Highlight: | 800X480 RGB Display Screen,RGB Display Screen 5 Inch,5 Inch LCD Resistive Touch Screen |
||

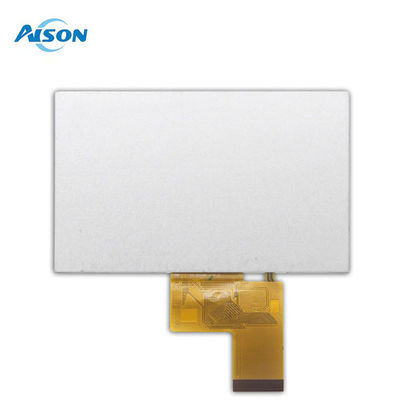

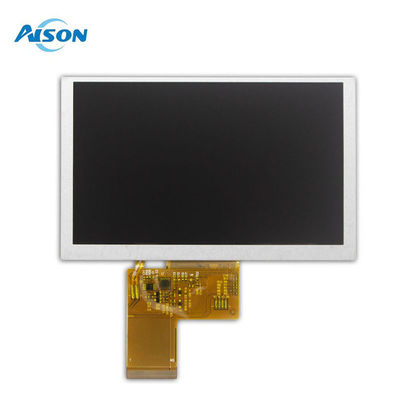

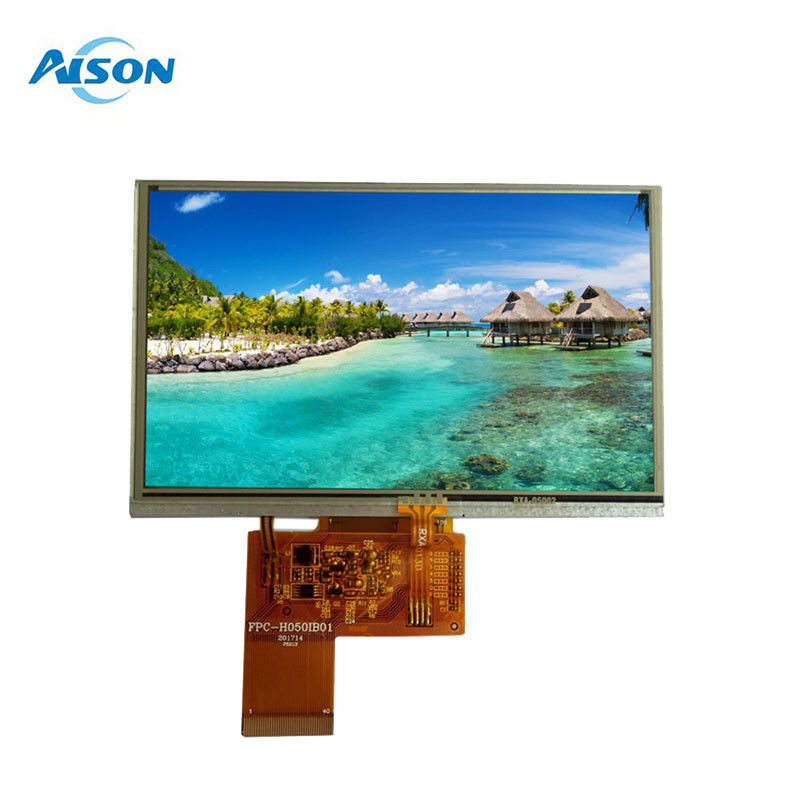

5 Inch 800X480 RGB Interface TFT LCD Module Resistive Touch Display
Introducing the Z050WV20-T, a state-of-the-art 5.0-inch TFT LCD module, or simply a 5" TFT LCD module, designed to elevate your display experience. This versatile module features a crisp resolution of 800x480 pixels, providing clear and vibrant visuals on its 5-inch TFT-LCD screen with a 16:9 aspect ratio.
Enhancing user interaction, this TFT-LCD display incorporates a resistive touch panel (RTP), making it a responsive and intuitive 5-inch touchscreen TFT LCD display. The outline dimensions of this 5" TFT LCD module measure 120.7 x 75.8 mm, with an active area (AA size) of 108.0 x 64.80 mm, ensuring a sleek and compact design for seamless integration into various electronic devices.
Powered by IPS display technology, the Z050WV20-T delivers wider viewing angles (left: 85 / right: 85 / up: 85 / down: 85 degrees), ensuring optimal visibility from different perspectives. The module is equipped with the advanced ST7262 IC and supports a 24-bit RGB interface, contributing to seamless and high-quality image rendering.
Featuring an anti-glare surface, this 5.0-inch TFT LCD module effectively reduces light reflection, making it suitable for diverse applications. With a brightness of 300 nits (typical) and a contrast ratio of 1000:1, the display excels in various lighting conditions, minimizing glare from light sources and reducing eye fatigue.
Operating in a wide temperature range from –30℃ to +80℃, and with storage temperatures between -35℃ and +85℃, the Z050WV20-T is built to withstand diverse environmental conditions. The supply voltage ranges from 3.1V to 3.6V, with a typical value of 3.3V, adding to its adaptability in different electronic systems.
General Data
| Product Name | 5.0 inchTFT Display with Resistive Touch |
| Number of Pixel | 800x480 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 300cd/m2 |
| Active area |
120.7*76.3*4.4mm
|
| LCM (W x H x D) |
108x64.8 mm
|
| Viewing Direction(eye) | IPS/ALL |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -35 to 85 degree |
Drawing
Product Details
TFT Applications
This 5 inch TFT LCD module is the ideal choice for a range of applications, including dashcams, portable medical devices, measurement instruments, testing equipment, digital photo frames, and small entertainment systems.
