Product Details:
|
| Display Name: | 10.1 Inch IPS TFT Display | Resolution: | 1280X800 |
|---|---|---|---|
| Outline Dimension: | 260X169*5.7mm | Active Area: | 216.96X135.6mm |
| Interface Type: | LVDS | Display Mode: | Normally Black, Transmissive |
| Luminance: | 900cd/m2 | Working Temperatures: | -20 To 70 Degree |
| Contrast Ratio: | 1000:1 | ||
| Highlight: | High Brightness TFT IPS Screen,TFT IPS Screen 10.1 Inch,Capacitive Touch Panels 1280x800 |
||

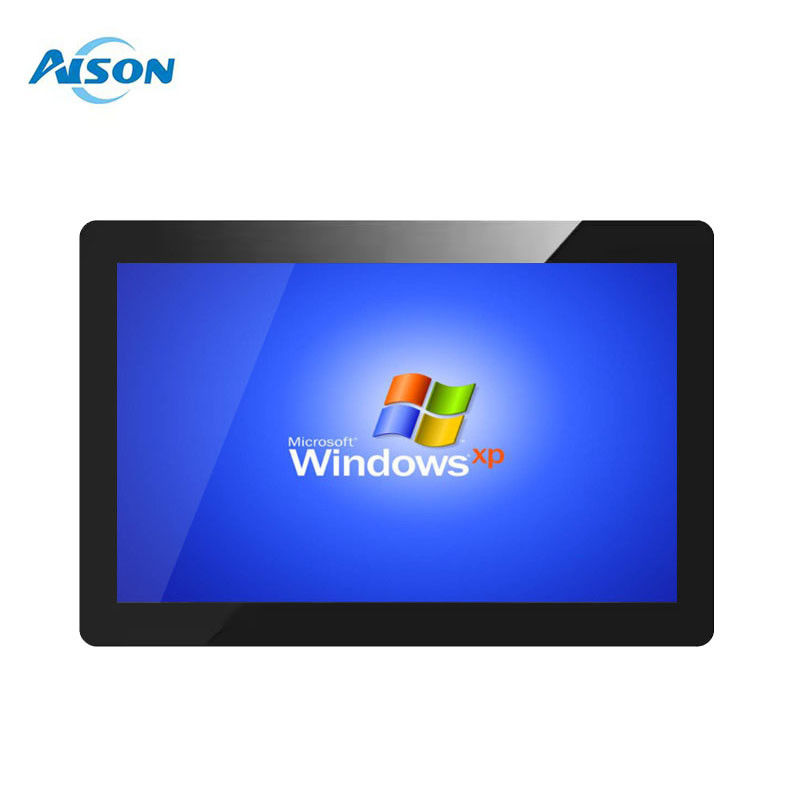

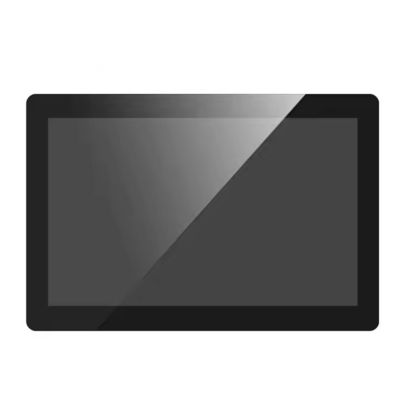

High Brightness 10.1 Inch 1280x800 IPS TFT Display with Capacitive Touch Panel
Display General Description
The Z101WX21J-CT is a high-performance 10.1-inch LVDS TFT LCD module equipped with a Projected Capacitive Touch Panel (PCAP), making it ideal for various applications such as industrial control panels, testing equipment, medical devices, vending machines, and automatic payment systems.
This 10.1-inch IPS TFT LCD features a high resolution of 1280 x 800 pixels, supported by the EK79202B1 driver IC. It offers a wide viewing angle of 85 degrees (typical) on all sides, a contrast ratio of 1000:1 (typical), and a brightness of 350 nits (minimum). The anti-glare surface and 16:10 aspect ratio enhance its visual appeal and usability.
The 10.1'' touch display Z101WX21J-CT is available with both Projected Capacitive Touch (PCAP) and Resistive Touch Panel (RTP) options, and we provide customizable solutions to meet specific customer requirements.
The lcd module operates on a supply voltage (VCC) of 3.0V to 3.5V, with a typical value of 3.3V. It is designed to function reliably within a wide temperature range of -20℃ to +70℃ for operation and -30℃ to +80℃ for storage, ensuring robust performance in diverse environmental conditions.
This 10.1-inch IPS LCD module combines exceptional display quality, versatility, and durability, making it a reliable choice for demanding applications.
General Data
| Model Name | 10.1 inch LVDS IPS Touch Screen Display |
| Resolution | 1280X800 |
| Model Size (W*H*T)mm |
260X169*5.7
|
| Display Area (W*H)mm |
216.96X135.6
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 900 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 36 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The Z101WX21-CT is a remarkable 10.1-inch LVDS TFT LCD featuring a Projected Capacitive Touch Panel (PCAP), specifically designed for a wide range of applications, including industrial control panels, testing equipment, medical devices, vending machines, and automatic payment machines.
