Product Details:
|
| Product: | 7 Inch Custom LCD Display Module | Resolution: | 1024X600 |
|---|---|---|---|
| Module Dimension: | 164.9*100*5.07mm | Active Area: | 154.21 X 85.92mm |
| Interface Type: | LVDS | Luminance: | 400cd/m2 |
| LCD Type: | TFT, Normally Black, Transmissive | Contrast Ratio: | 700:1 |
| Working Temperatures: | -20℃ To +70℃ | Storage Temperatures: | -30℃ To +80℃ |
| Highlight: | 1024x600 TFT IPS Display,TFT IPS Display 400 Cd/M2,Capacitive Touch Display 7 Inch |
||

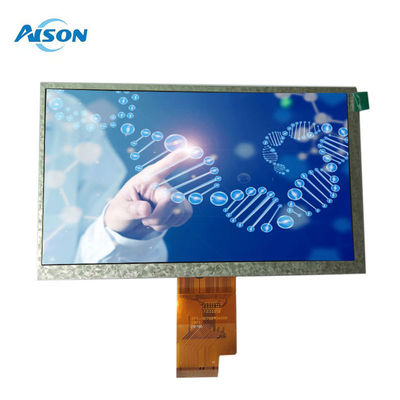

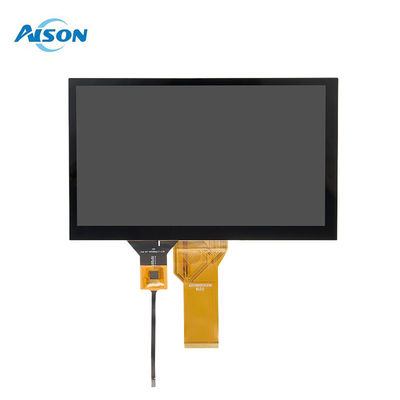

7 inch 1024x600 LVDS TFT IPS Display Capacitive Touch Display with Custom Oversized Coverglass
The Z070WS15 is a 7-inch IPS transmissive-type color active matrix TFT LCD with a resolution of 1024x600 pixels. Equipped with LVDS interfaces, this tft display is ideal for applications requiring high-speed data transmission due to its high data transfer rate and low power consumption.
This 7 inch lcd module Key features include a 16:9 aspect ratio, a power voltage (DVDD) range of 3.0V to 3.6V (typical 3.3V), and an anti-glare surface panel. The IPS viewing angles are 85/85/85/85, and the brightness ranges from 400 to 450 nits.
The 7 inch display module operates within a temperature range of -20°C to +70°C and can be stored in temperatures from -30°C to +80°C. This 7-inch LVDS TFT display is well-suited for various industrial control applications, offering reliable performance and versatility.
About this product
1, High-Resolution Display: This 7.0-inch TFT LCD display boasts a high resolution of 1024x600, providing a crisp and clear visual experience for users.
2, Multi-Angle Viewing: The display offers a wide viewing angle, allowing users to enjoy a clear and vibrant image from any position, making it ideal for applications where multiple viewers are present.
3, Customizable Options: As an ODM (Original Design Manufacturer) product, this LCD display can be customized to meet specific user requirements, including branding and design modifications, as per the customer's needs.
General Data
| Product Name | 7 inch IPS TFT Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm | 164.9*100*5.07mm |
| Display Area (W*H)mm | 154.21 x 85.92 |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m2 |
| Pin number | 40 pin |
| Contrast Ratio | 700:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 7inch IPS TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
