7 Inch Custom TFT Display Module1024x600 EMI FPC Black Bezel Customization

Large Image : 7 Inch Custom TFT Display Module1024x600 EMI FPC Black Bezel Customization

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z070WS03 V4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

7 Inch Custom TFT Display Module1024x600 EMI FPC Black Bezel Customization

Description

Name:	7 Inch Custom LCD Display Module	Resolution:	800X480
Outline Dimension:	164.9x100x3.5mm	Active Area:	154.21x 85.92mm
Interface:	RGB/LVDS	Brightness:	450cd/m2
Display Mode:	Normally White , Transmissive	Viewing Direction:	12 O'clock
Operating Temperatures:	-20 To 70 Degree	Storage Temperatures:	-30 To 80 Degree
Highlight:	1024x600 Custom LCD Display Module , Custom LCD Display Module 7 Inch , TFT LCD Panel 450cd/m2

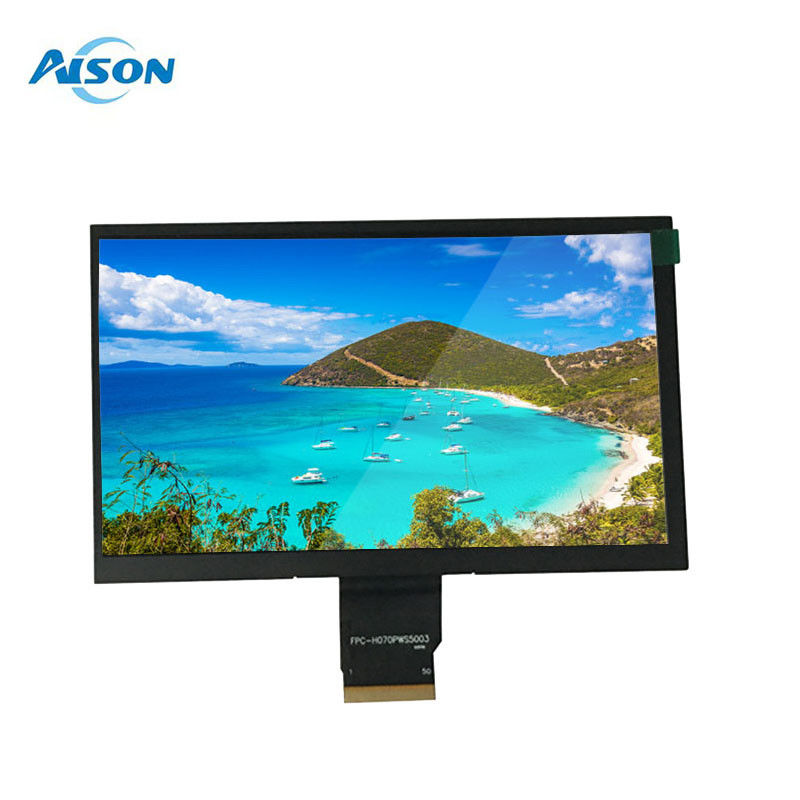

Custom 7 Inch 1024*600 TFT LCD Display Custom With Black Front Bezel EMI Shielding Film

General Description

The Z070WS03 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Aison, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.

This 7 inch model is a custom solution with black front bezel and EMI shielding film for FPC,this can better protect the products from ESD.

General Data

Model Name	7 inch LCD TFT Display
Resolution	1024X600
Model Size (WHT)	164.9x100x3.5mm
Display Area (W*H)	154.21x 85.92mm
Interface	RGB
Display Mode	Normally White,Transmissive
Viewing	12 O'clock
Brightness	450 cd/m2
Pin number	50 pin
Contrast Ratio	800:1
Operating temperatures	-20 to 70 ℃
Storage temperatures	-30 to 80 ℃

Drawing

7 Inch Custom TFT Display Module1024x600 EMI FPC Black Bezel Customization 0

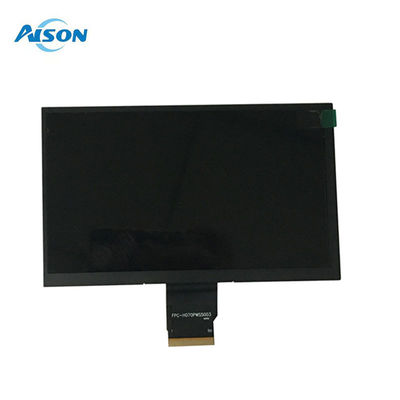

Product Details

7 Inch Custom TFT Display Module1024x600 EMI FPC Black Bezel Customization 2

TFT Applications

This 7 inch tft display features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C ,Based on its features, recommend that this model be applied to Industrial, medical application etc.

7 Inch Custom TFT Display Module1024x600 EMI FPC Black Bezel Customization 4
