7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display

7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display
7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display

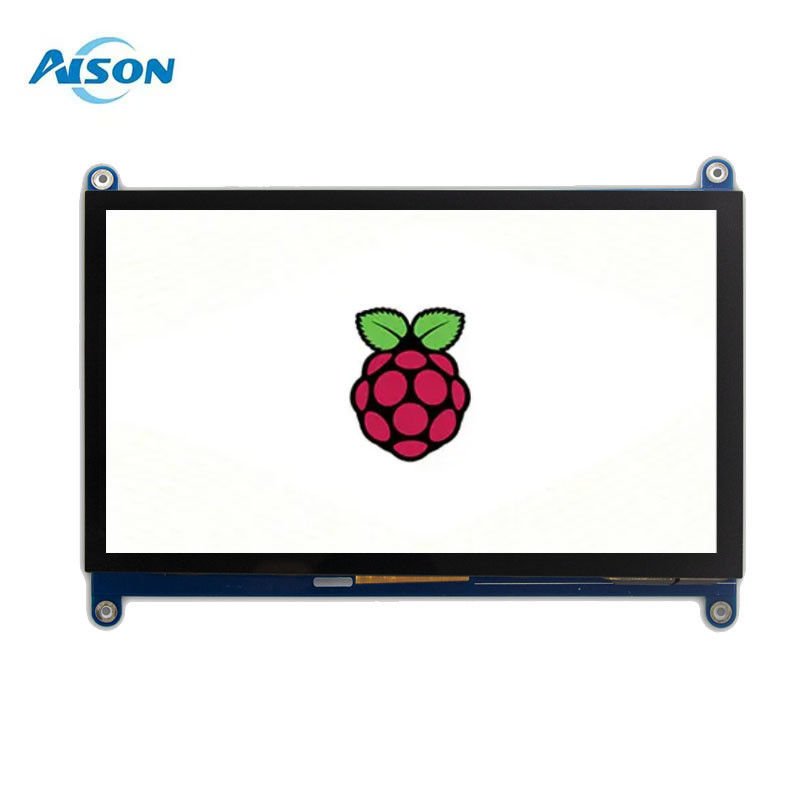

Large Image :  7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: RTD2660-V1.0N
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable based on quantity
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days for samples;3-4 weeks for mass production
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display

Description
Name: Raspberry Pi 7 Touchscreen Display Resolution: 1024x600
Outline Dimension: 164.9*122.96*13.2mm Active Area: 154.08x85.92mm
Interface: HDMI&USB Viewing Angle: 85/85/85/85
Brightness: 450cd/m2 Display Mode: Normally Black
Viewing Direction: ALL/IPS Operating Temperatures: -20 To 70 Degree
Storage Temperatures: -30 To 80 Degree
Highlight:

1024x600 HDMI TFT Display

,

HDMI TFT Display 450 Cd/M2

,

Raspberry Pi 7 Touchscreen Display

7 inch 1024x600 TFT LCD Raspberry Pi Capacitive Touch Screen Display Module IPS Raspberry Pi 4 3 Display



General Description

RTD2660-V1.0N is a 7.0inch LCD display driver board; supports HDMI input;supports I2S digital audio signal input and speaker output; Support 4-wire resistive touch panel or 6-wire capacitive touch panel.( This function can onlybe selected from two )



Features

1.7-inch IPS panel display, 1024×600 ultra-clear resolution. Capacitive touch screen, supports 5-point touch

2.Supports independent backlight control and can turn off the backlight to save power consumption
3.Supports standard HDMI/Mini VGA interface input, compatible and can be directly plugged in (3rd generation, 2nd generation and 1st generation)

4.Can be used as a general HDMI display, such as connecting to a computer HDMI as a secondary display (the resolution output must be adjustable to 1024X600)

5.Used as a monitor, supports Raspbian, Ubuntu, Kodi, win10 IOT, single-touch, driver-free

6.Used as a computer monitor, supports 5-point touch for win7, win8, win10 and win11 systems (single-touch for XP and older systems), driver-free





General Spec

Model Name 7 inch Raspberry Pi Touch Display
Resolution 1024X600
Model Size (W*H*T)mm 164.9*122.96*13.2
Display Area (W*H)mm 154.08x85.92
Interface HDMI &USB
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 450 cd/m2
Pin 50
Touch Captouch
Application For Raspberry Pi
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree







Drawing

7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 0



Product Details

7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 17 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 2



TFT Applications



This 7 inch Raspberry Pi Touch Display 1024x600 IPS HDMI TFT Display application:

1,.Used as a monitor, supports Raspbian, Ubuntu, Kodi, win10 IOT, single-touch, driver-free

2.Used as a computer monitor, supports 5-point touch for win7, win8, win10 and win11 systems (single-touch for XP and older systems), driver-free





7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 37 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 47 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 57 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 67 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 77 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display 8
