Product Details:
|
| Product Name: | 5 Inch HDMI Raspberry Pi Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 164.9*122.96*13.2mm | Active Area: | 154.08x85.92mm |
| Interface Type: | HDMI&USB | Luminance: | 400cd/m2 |
| Display Mode: | Normally Black | Working Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 5 Inch Raspberry Pi Screen,Raspberry Pi Screen 800x480,Capacitive Touch Screen Module 400 Cd/M2 |
||

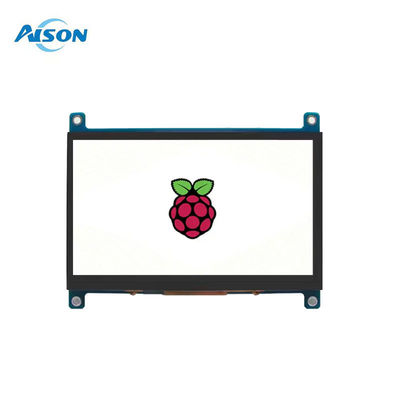

5 inch Raspberry Pi Display 2 3 4 B TFT LCD 800x480 Capacitive Touch Screen Module
General Description

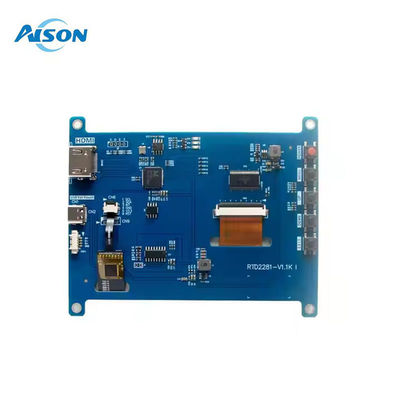

Product Description: RTD2281-V1.1K
Introducing the RTD2281-V1.1K - a 5.0-inch 800x480 IPS LCD display driver board with HDMI input support and capacitive touch panel functionality.
Features:
This compact and versatile display solution is perfect for both industrial and consumer applications.
General Spec
| Model Name | 5 inch Raspberry Pi Display |
| Resolution | 800x480 |
| Model Size (W*H*T)mm | 120.7x98x12.4mm |
| Display Area (W*H)mm | 108x64.8mm |
| Interface | HDMI &USB |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 400 cd/m2 |
| Pin | 40 |
| Touch | Captouch |
| Application | For Raspberry Pi |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications

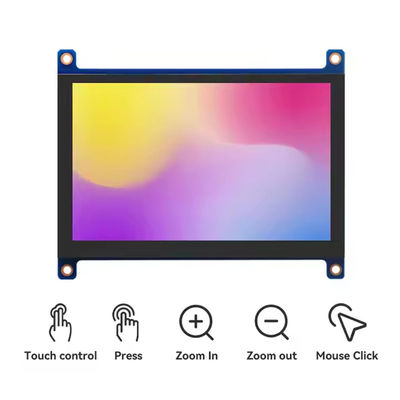

IPS full viewing angle display○800X480 resolution, up to 178° full viewing angle panel

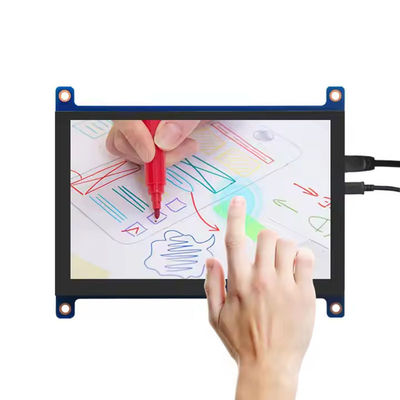

Use as a Raspberry Pi display
○Support Raspberry Pi back-to-back direct installation and locking
○Support mainstream development boards such as Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black, etc.
○When used with Raspberry Pi, it supports mainstream systems such as Raspbian, Kali linux, ubuntu, etc., supports touch control,
plug-and-play driver-free.
Use as a mini PC monitor
○It can be used as a computer secondary screen display (Windows supports 5-point touch), and can be used with other Mini PC
monitors to display
